Molex 5018645081 — FFC / FPC Cable Assemblies

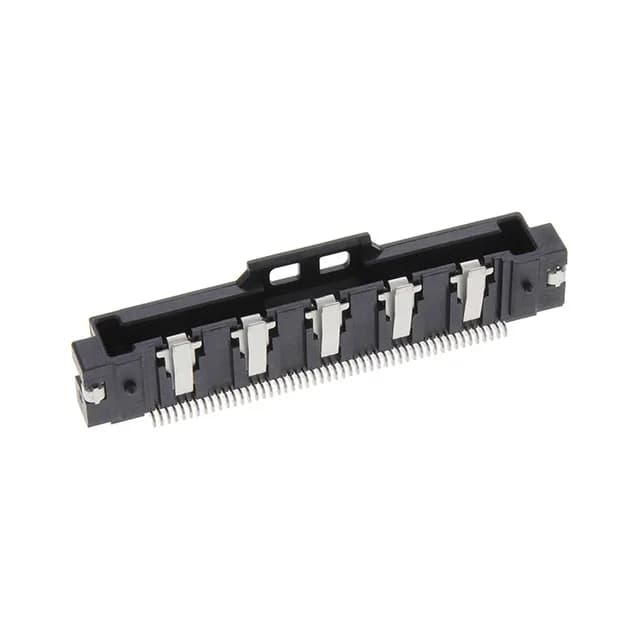

Molex 5018645081 Easy-On FFC Connector, 0.50mm Pitch, 50 Pos

MPN5018645081
Active

Molex Easy-On 501864, FFC bottom-contact connector, 0.020" (0.50mm) pitch, 50 positions, right-angle SMT, slide lock, tape & reel

$4.9400Ref. price · indicative, final on quote
Molex 5018645081 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEasy-On 501864
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5018645081 specifications
ParameterValue
SeriesEasy-On 501864
MountingSurface Mount, Right Angle
Cable end typeNotched
Flat flex typeFFC
Connector (Contact type)Contacts, Bottom
Housing colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Height above board0.191\" (4.85mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
TerminationSolder
Contact finishTin Bismuth
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions50

Product details

Molex 5018645081 is a 50-position, 0.50mm pitch FFC connector from the Easy-On 501864 series. It terminates FFC cable 0.30mm thick with a notched end, using bottom contacts in a right-angle surface-mount package.

Pitch, positions, and mating half

At 0.50mm pitch and 50 circuits, this connector suits dense FFC assemblies common in display, touch-panel, or data interfaces. The bottom-contact design means the FFC pads face down against the PCB pads. The 0.30mm FFC thickness is standard for this pitch class; a stiffener on the FFC tail is recommended for insertion force and alignment.

ROHS3 compliant. Tape & Reel packaging supports automated pick-and-place.

Frequently asked questions

How can I order Molex 5018645081 and check availability?

Active in production — quoted to order against your BOM line.

What is the pitch of Molex 5018645081?

0.020" (0.50mm) pitch, 50 positions.

Does the 5018645081 have a locking feature?

Yes, a slide lock retains the FFC after insertion.
