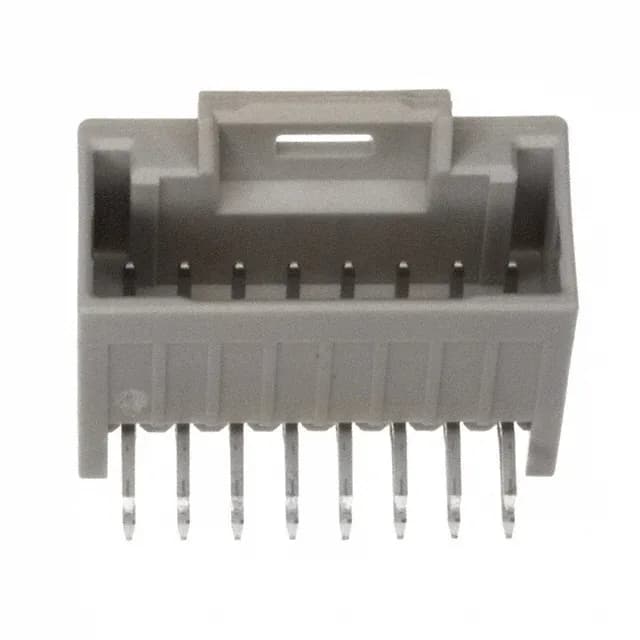

Molex iGrid 501876 series, 5018761640, Board to Cable/Wire header, 16 circuits, 2.00 mm pitch, dual-row, right-angle through-hole, shrouded 4-wall, latch holder, tin-plated contacts.
| Parameter | Value |
|---|---|
| Series | iGrid 501876 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.327\" (8.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The 4-wall shroud surrounds the male pins, protecting them during handling and guiding the mating receptacle into alignment.
The contact material is brass, a standard choice for signal-level current. The solder post length is 0.126" (3.20 mm), which fits standard through-hole PCB thicknesses in the 1.6 mm range.
The 5018761640 is a header from the Molex iGrid 501876 series. The mating half is a receptacle housing from the same iGrid series, using 2.00 mm pitch crimp terminals. Confirm the circuit count and keying match the application.
Yes, it is ROHS3 Compliant.
