Right-angle 24-position header for wire-to-board duty

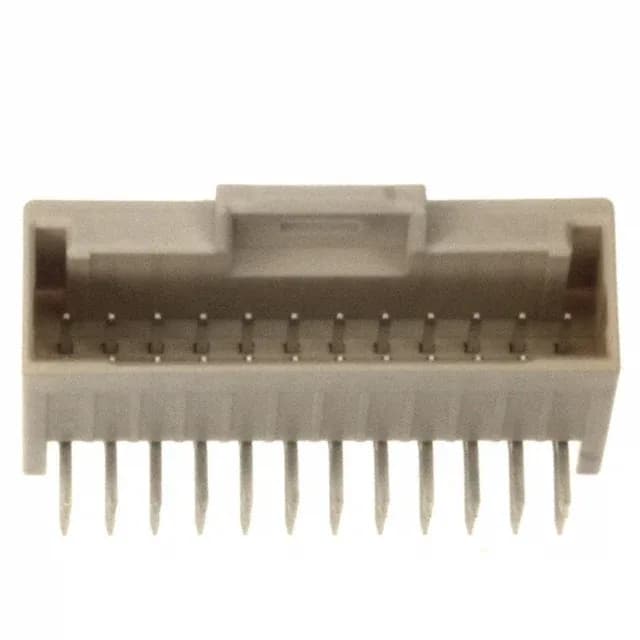

The 5018762440: This Molex iGrid 501876 header is a 24-position, 2.00mm-pitch, right-angle through-hole male pin header designed for board-to-cable/wire connections.
Pitch, position count, and orientation
The 2.00mm pitch and 2.00mm row spacing give this header a compact footprint — 24 positions in a dual-row layout, all positions loaded.
RoHS3 compliant.
Mates with the iGrid 501876 receptacle housing (2.00mm pitch, 24-position, dual-row) loaded with the matching crimp terminals. Termination is solder to the through-hole posts (0.126" / 3.20mm post length). The right-angle pins require the board to have plated through-holes on a 2.00mm grid; confirm the footprint matches the dual-row layout before committing the PCB.
