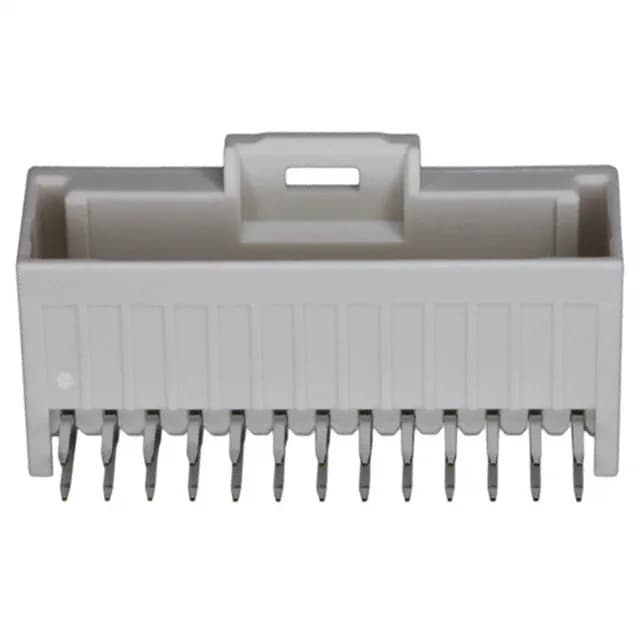

Molex iGrid 501876 series, 26-position, 2.00 mm pitch, right-angle, shrouded header, through-hole solder termination, tin-plated contacts, UL94 V-0 natural PA66 housing, tray package.
| Parameter | Value |
|---|---|
| Series | iGrid 501876 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.327\" (8.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The 5018762640: This Molex iGrid 501876 header carries 26 circuits on a 2.00 mm pitch, dual-row layout, with all positions loaded.
A full 4-wall shroud surrounds the male pins, protecting them during handling and guiding the mating receptacle into alignment.
Yes, this header is part of the iGrid 501876 series and mates with the matching iGrid receptacle housings and crimp terminals.
