Molex 5018763440

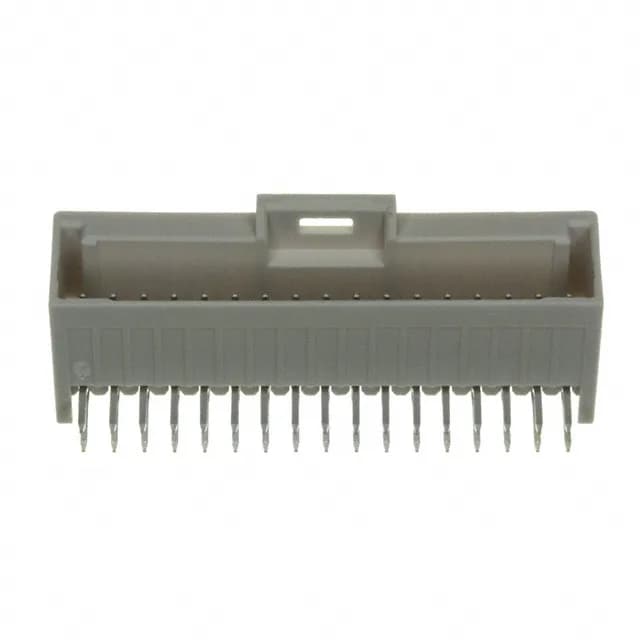

Molex 5018763440 iGrid 34-Pin Right-Angle Header

MPN 5018763440
Active

Molex iGrid 501876 series, 5018763440, Board to Cable/Wire header, 34 circuits, 2.00mm pitch, right-angle through-hole, shrouded - 4 wall, latch holder, tin-plated contacts.

$2.8100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesiGrid 501876
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5018763440 key specifications
ParameterValue
SeriesiGrid 501876
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Contact materialBrass
Insulation colorNatural
Insulation height0.327\" (8.30mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

5018763440 additional specifications
ParameterValue
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions34
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin

Product details

The 5018763440: The right-angle through-hole termination routes the mated cable parallel to the board — a space-saving choice for enclosures with tight z-height budgets. The full 4-wall shroud with a latch holder protects the male pins from damage during handling and locks the mating receptacle in place, reducing the risk of disconnection under vibration.

Tin-plated contacts, UL94 V-0 housing

Both the mating and post contacts are tin-plated, suitable for moderate mating-cycle applications in cost-sensitive designs.
