Molex 5019514000 — FFC / FPC Cable Assemblies

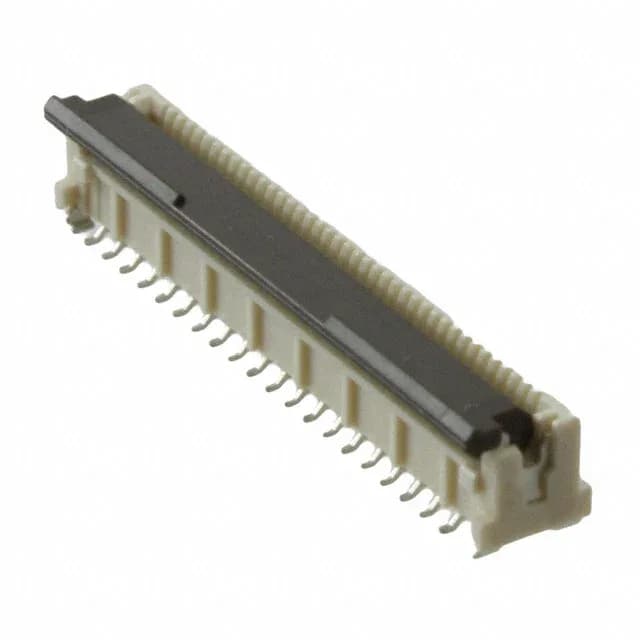

Molex 5019514000 FFC Connector 0.50mm Pitch 40 Pos SMD

MPN5019514000
Active

Molex Easy-On 501951, FFC connector, 40 positions, 0.50mm pitch, vertical SMD, flip lock, 0.4A per contact, 50V rating, Tin Bismuth plating, ROHS3 compliant.

$1.8600Ref. price · indicative, final on quote
Molex 5019514000 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEasy-On 501951
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5019514000 key specifications
ParameterValue
SeriesEasy-On 501951
MountingSurface Mount
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.4A
Operating temperature-25°C ~ 85°C
Housing colorWhite
Actuator colorBrown
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5019514000 additional specifications
ParameterValue
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.159\" (4.04mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Contact finishTin Bismuth
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions40

Product details

40-position 0.50mm pitch FFC connector for tight board layouts

The Molex 5019514000 is a 40-position, 0.50mm pitch FFC connector from the Easy-On 501951 series. It uses a vertical SMD orientation with a flip-lock actuator, accepting 0.30mm-thick FFC cables with straight or tapered ends.

Position count options within the same series

The Easy-On 501951 series includes 30-position (5019513000), 45-position (5019514500), and 50-position (5019515000) variants with identical 0.50mm pitch, vertical SMD footprint, and flip-lock actuator. The 40-position 5019514000 sits between the 30- and 45-position options.

Frequently asked questions

What is the pitch and number of positions for Molex 5019514000?

The pitch is 0.50mm and it has 40 positions.

What is the closest functional alternative to 5019514000 from the same series?

The 45-position 5019514500 shares the same 0.50mm pitch, vertical SMD footprint, flip lock, and 0.4A/50V rating.
