Molex 5019515000 — FFC / FPC Cable Assemblies

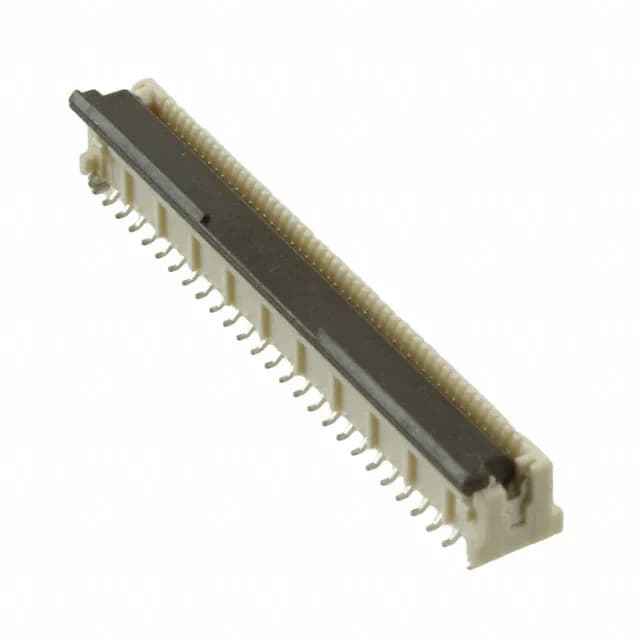

Molex 5019515000 FFC Connector – 0.50mm Pitch, 50 Pos, SMD

MPN5019515000
Active

Molex Easy-On 501951 series, 5019515000, FFC/FPC connector, 0.020" (0.50mm) pitch, 50 positions, vertical SMD, flip lock, tin bismuth contacts, 0.4 A, 50 V, -25°C to 85°C.

$2.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEasy-On 501951
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5019515000 key specifications
ParameterValue
SeriesEasy-On 501951
MountingSurface Mount
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.4A
Operating temperature-25°C ~ 85°C
Housing colorWhite
Actuator colorBrown
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5019515000 additional specifications
ParameterValue
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.159\" (4.04mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Contact finishTin Bismuth
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions50

Product details

0.50 mm pitch, 50-position vertical SMD

The 5019515000: It terminates to a 0.30mm-thick FFC or FPC with a straight or tapered cable end. The vertical orientation and SMD solder tails keep the assembly low-profile above the board at 0.159" (4.04mm).

Flip lock and tin bismuth contacts

The flip-lock actuator — brown polyamide (PA9T) glass-filled — secures the FFC without a secondary latch. The contacts are tin bismuth over copper alloy, rated 0.4 A per circuit at 50 V. That current ceiling is typical for 0.50 mm pitch signal connectors; don't plan on power delivery through this part.

Frequently asked questions

Is the 5019515000 RoHS compliant?

Yes, it's ROHS3 compliant.

What is the height of the 5019515000 above the PCB?

The height above board is 0.159" (4.04mm).
