Molex Easy-On 502244 series, 33-position, 0.50mm pitch FFC connector, ZIF flip-lock, bottom contacts, 0.4A per contact, 50V rating, surface-mount right-angle, active production.
| Parameter | Value |
|---|---|
| Series | Easy-On 502244 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.4A |
| Operating temperature | -25°C ~ 85°C |
| Housing color | White |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.092\" (2.33mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 33 |
| Contact finish thickness | 3.94µin (0.10µm) |

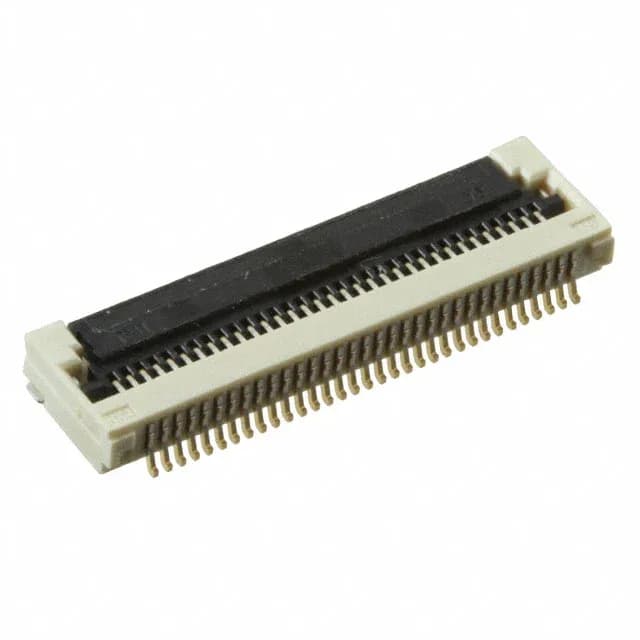

Molex 5022443330 is a 33-position, 0.50mm pitch FFC connector from the Easy-On 502244 series. Bottom-contact orientation means the cable's conductive pads face down toward the PCB. Rated 0.4A per contact at 50V, with gold-plated phosphor bronze contacts (3.94 µin gold) good for 20 mating cycles. The 0.30mm FFC thickness is specified — verify your cable matches that stack-up before assembly.
Yes. The 5022443330 uses a ZIF flip-lock actuator — the FFC inserts without force, then the actuator locks the contacts. This reduces wear on the cable pads and improves assembly yield.
The pitch is 0.50mm (0.020"). This is the center-to-center spacing of the contacts, matching standard 0.50mm-pitch FFC cable.
Yes. It is ROHS3 compliant per the manufacturer's listing.
