Molex 5023510301 — Connector Housings

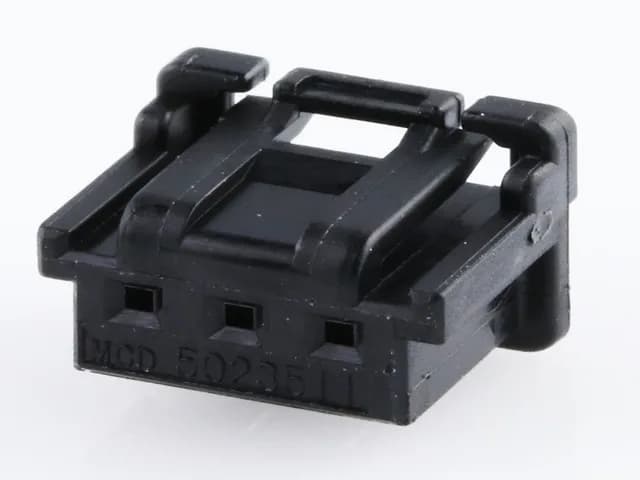

Molex 5023510301 DuraClik Receptacle, 3 Pos, 2.00mm Pitch

MPN5023510301
Active

Molex DuraClik 502351 receptacle housing, 3 positions, 2.00mm pitch, 1 row, free-hanging crimp termination, black PBT, latch holder, -40°C to 105°C.

$0.3000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDuraClik 502351
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5023510301 specifications
ParameterValue
SeriesDuraClik 502351
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions3

Product details

Housing for a 3-Circuit Harness

Crimp Termination and Mating Half

Active and Sourced to Order

No obsolescence notice or last-time-buy on record. The base product number is 502351; the 0301 suffix identifies the 3-circuit, single-row, black housing variant.

3 vs 2 Positions — Same Pitch, Different Circuit Count

The sibling 5023510201 is the 2-position version of the same DuraClik 502351 receptacle housing. Same 2.00mm pitch, same latch holder, same crimp termination, same black PBT body. Choose the one that matches your circuit count on the BOM — the board footprint scales linearly with position count at the fixed 2.00mm pitch.

Frequently asked questions

What is the pitch of 5023510301?

The pitch is 0.079" (2.00mm). This is the centre-to-centre spacing between adjacent contact positions, and it must match the mating header's pitch for the pair to fit.
