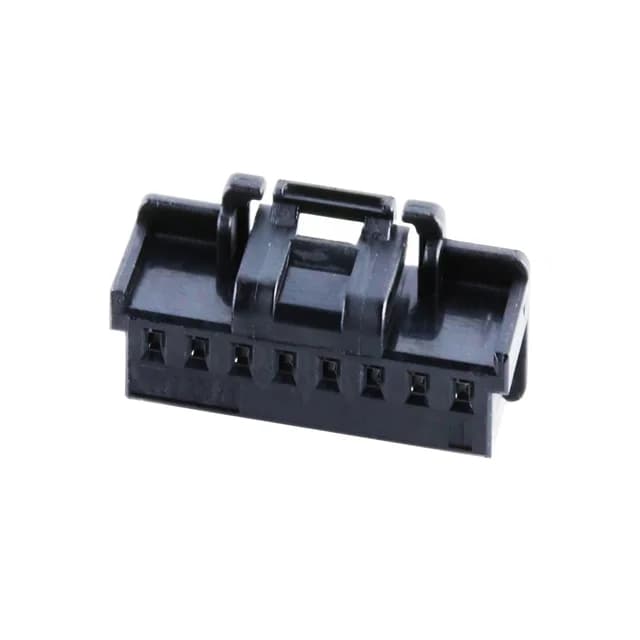

Molex DuraClik 502351 8-position receptacle housing, 2.00mm pitch, 1 row, free-hanging, crimp termination, latch holder, PBT, black, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | DuraClik 502351 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 8 |
For the wire side, the housing accepts Molex DuraClik crimp terminals — typically part number 5023510300 (female socket, 20-24 AWG) or the equivalent — which must be ordered separately since the housing ships without contacts. The single-row, 8-position layout keeps the wire dress tidy and the connector width narrow for space-constrained enclosures.
The housing does not include contacts, so buyers must know which terminal pins to order separately.
Cost is a primary factor for sourcing decisions and BOM budgeting.
Buyers need to identify authorized distributors with stock to avoid counterfeit or long lead times.
Lifecycle status determines availability and risk of redesign if the part is end-of-life.
Design engineers need the male counterpart to ensure proper fit and connection in the system.
Comparing part number variations helps buyers select the correct option for their application.
