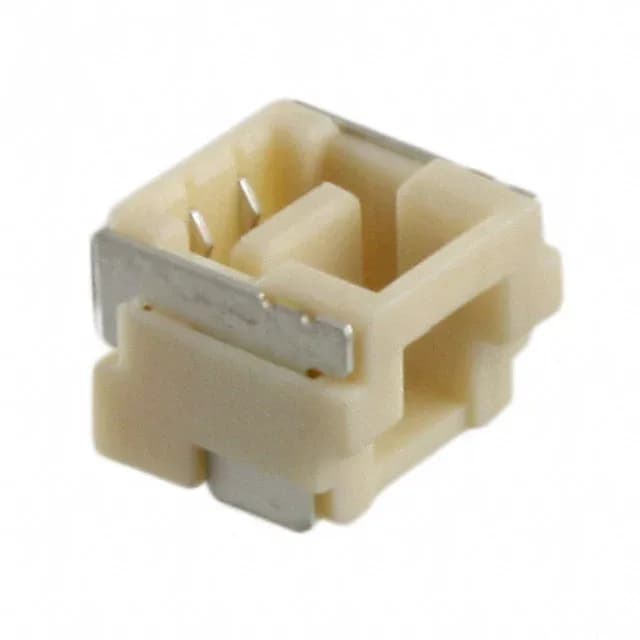

Molex CLIK-Mate 502382 series, 5023820270, Board to Cable/Wire receptacle, 2 positions, 1.25 mm pitch, 1 A, 50 V, tin plating, latch holder, SMT, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502382 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The Molex 5023820270 is a 2-position, 1-row receptacle from the CLIK-Mate 502382 series, designed for Board to Cable/Wire applications where a compact, positive-locking interconnect is needed.
Rated 1 A per contact at 50 V, with tin-plated copper alloy contacts (39.4 µin mating and post finish) — the 1 A ceiling reflects the narrow pitch and signal-duty intent, not the contact cross-section.
We source the 5023820270 per RFQ against your BOM quantity.
The 5023820270 is a receptacle that mates with a CLIK-Mate 502382 series header (male pin header) of the same 1.25 mm pitch and 2-position count. Confirm the mating half order code from the same series.
