The 5023820370: It uses a 1.25mm pitch and surface-mount solder tails with a latch holder for secure mating in vibration-prone environments.
The forked contact design provides a reliable connection with the header pin.

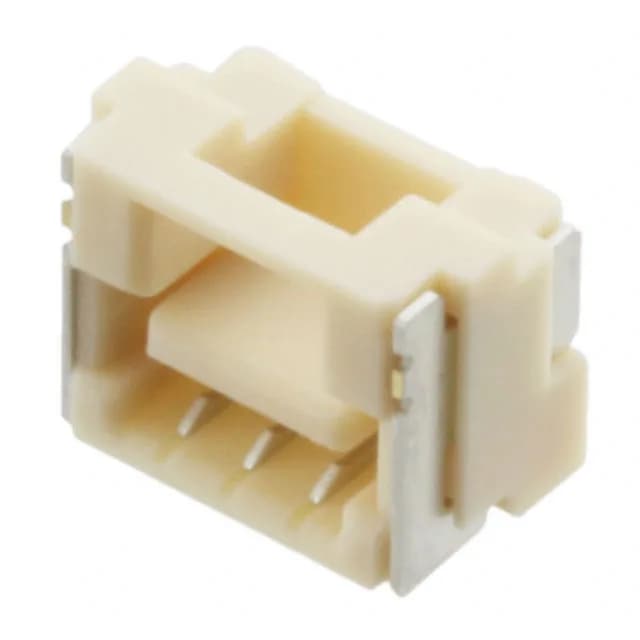

Molex 5023820370 CLIK-Mate 1.25mm 3-Pin Receptacle
MPN5023820370
Active
Molex CLIK-Mate 502382, 1.25mm pitch, 3-position receptacle, SMT, tin-plated forked contacts, latch holder, 1A, 50V, -40°C to 105°C.
$0.6900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIK-Mate 502382
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502382 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Resin |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Product details
Frequently asked questions
What is the mating connector for the 5023820370?
The mating half is a CLIK-Mate 502382 series pin header, typically a 3-position, 1.25mm pitch, SMT or through-hole header with a locking ramp. Confirm the exact header part number against your application.
Is the 5023820370 RoHS compliant?
Yes, it is ROHS3 compliant.
