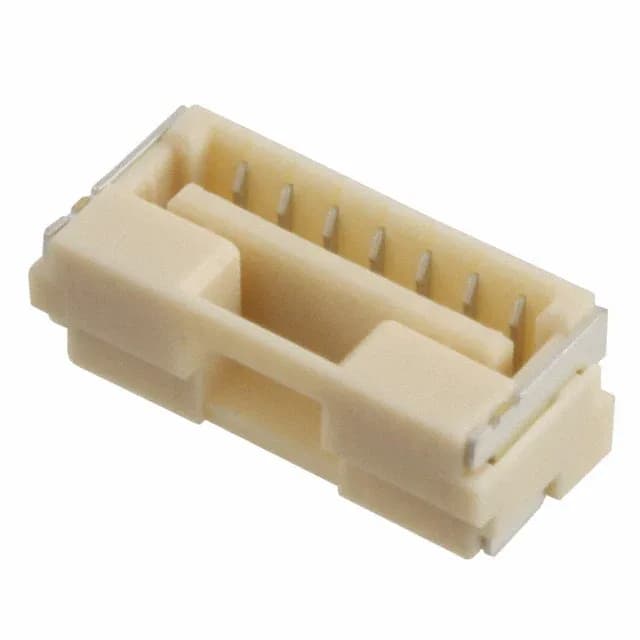

Molex CLIK-Mate 502382 series, 5023820770, 7-position 1.25mm pitch SMT receptacle, 1A per contact, 50V, latch holder, tin-plated fork contacts, UL94 V-0 natural resin, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502382 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 1.25mm pitch and SMT mounting target compact designs where routing density matters. Rated 1A per contact at 50V, the tin-plated fork contacts suit signal-level interconnects in automotive, industrial, lighting, and medical equipment.
The UL94 V-0 resin housing adds flame-retardant compliance for enclosed equipment.
The 5023820770 is an active Molex product, not a discontinued item. We source it per RFQ against your target quantity — current pricing and stock availability are confirmed at the time of your request.
The mating pitch is 0.049 inch (1.25mm), single-row, 7 positions loaded.
Confirm the mating half part number from the series datasheet.
Yes, the 5023820770 carries a ROHS3 compliance status per the manufacturer.
