Molex CLIK-Mate 502382 series, 1.25mm pitch, 8-position SMT receptacle, tin-plated forked contacts, 1A/50V, latch holder, -40°C to 105°C, UL94 V-0, ROHS3
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502382 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |

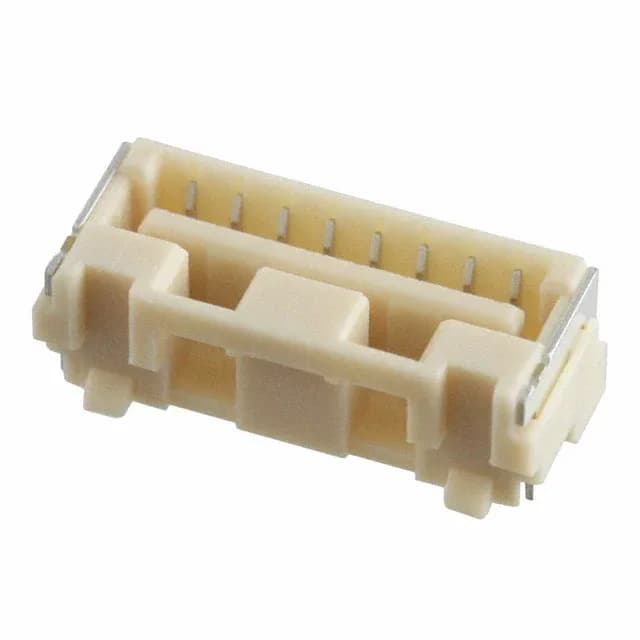

The Molex 5023820872 is an 8-position, single-row SMT receptacle from the CLIK-Mate 502382 series, designed for board-to-wire connections at a 1.25mm pitch.
It is supplied on tape and reel (cut tape available) with pick-and-place and solder retention features for automated assembly.
It mates with a Molex CLIK-Mate 502382 series header of matching 1.25mm pitch and 8 positions.
Yes, it is ROHS3 compliant per the lifecycle record.
