Molex 5023820971

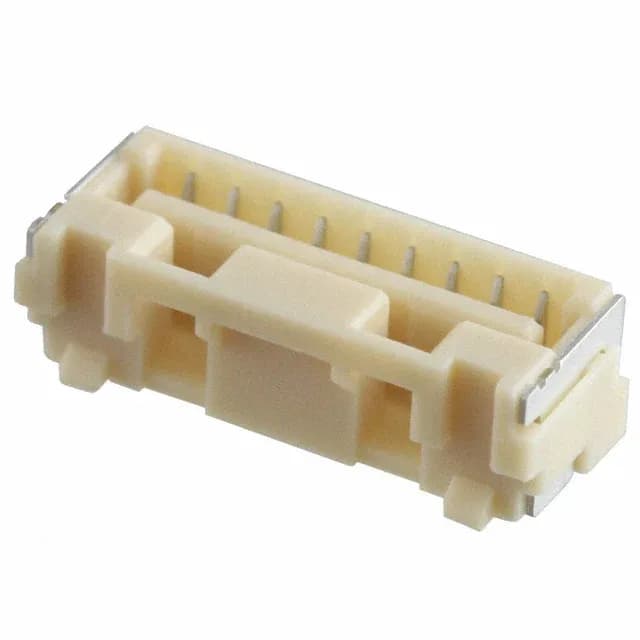

Molex 5023820971 – 9-Position 1.25mm Pitch SMT Receptacle

MPN 5023820971
Active

Molex CLIK-Mate 502382, 9-position 1.25mm pitch SMT receptacle, gold mating finish, latch holder, rated 1A at 50V, -40°C to 105°C, UL94 V-0

$1.4100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 502382
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5023820971 key specifications
ParameterValue
SeriesCLIK-Mate 502382
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating50V
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.173\" (4.40mm)
Insulation materialResin

All specifications

5023820971 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.049\" (1.25mm)
Positions9
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

Board footprint and routing: 1.25 mm pitch, 9 positions

The 5023820971: This is a 9-position, single-row SMT receptacle on 1.25 mm pitch — the tightest pitch in the CLIK-Mate 502382 family that still allows manual routing between pads on a two-layer board.

Current and voltage: 1 A per circuit at 50 V

The forked contact design with gold mating finish keeps contact resistance stable over 50+ mating cycles. The tin-plated post (39.4 µin) handles the solder joint; the gold mating surface (3.90 µin) resists fretting corrosion in automotive and industrial environments.
