Molex 5023821070

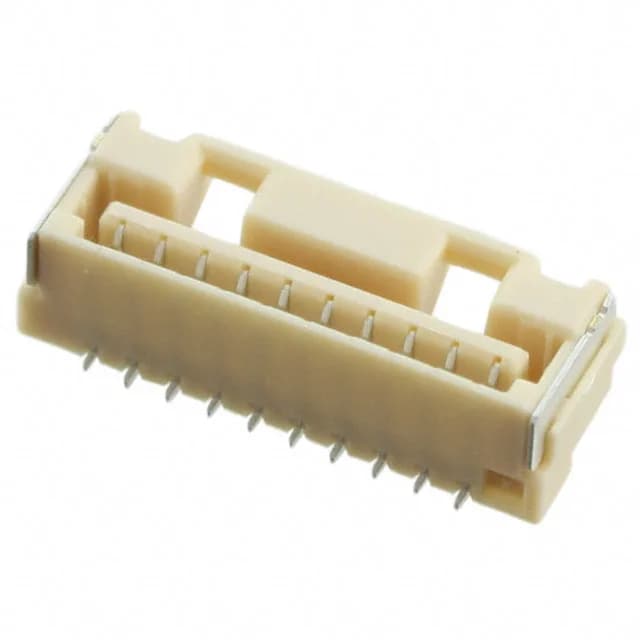

Molex 5023821070 – CLIK-Mate 1.25 mm Receptacle, 10-Pin, Tin

MPN 5023821070
Active

Molex CLIK-Mate 502382, 10-position receptacle, 0.049" (1.25 mm) pitch, SMT, tin-plated fork contacts, latch holder, 1 A, 50 V, -40°C to 105°C, UL94 V-0.

$0.9700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 502382
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5023821070 key specifications
ParameterValue
SeriesCLIK-Mate 502382
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating50V
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.173\" (4.40mm)
Insulation materialResin

All specifications

5023821070 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.049\" (1.25mm)
Positions10
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

1.25 mm pitch wire-to-board receptacle for signal-level duty

The 5023821070 is a 10-position receptacle from the Molex CLIK-Mate 502382 series, designed for board-to-cable/wire connections on a 0.049" (1.25 mm) pitch. It mates with the corresponding CLIK-Mate pin header (e.g., 502381 series) to form a wire-to-board interconnect.

Latch holder and solder retention for vibration environments

A latch holder on the receptacle locks with the header's ramp, providing positive retention in automotive, industrial, and lighting applications where vibration is present. The solder retention feature adds mechanical anchor points on the SMT pads, reducing the risk of lifted pads during reflow or cable strain.

SMT termination with tape-and-reel packaging

The 0.173" (4.40 mm) insulation height clears most low-profile headers.
