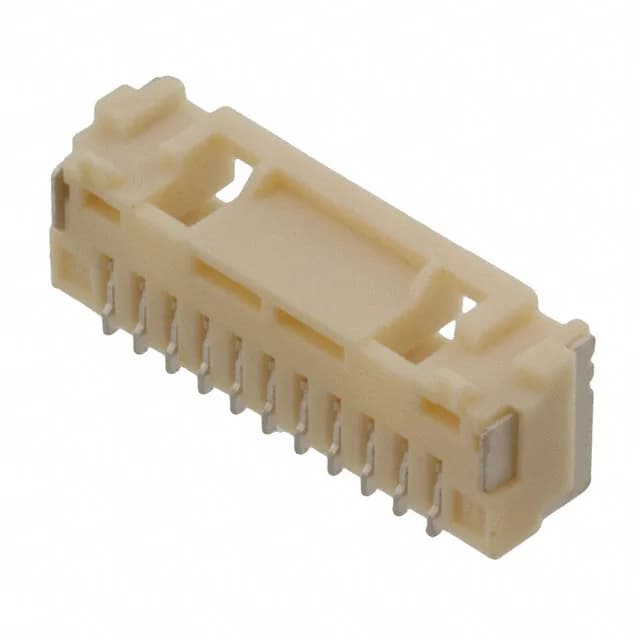

Molex CLIK-Mate 502382 series, 5023821170 – 11-position, 1-row receptacle, 1.25mm pitch, SMD, tin-plated contacts, latch holder, UL94 V-0, -40°C to 105°C
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502382 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The Molex 5023821170 is an 11-position, single-row receptacle from the CLIK-Mate 502382 series, designed for board-to-cable/wire interconnect. The 1A per-contact current rating and 50V voltage rating signal this is a signal-duty connector, not a power interconnect.
The insulation height of 0.173" (4.40mm) sets the mated stack height above the board. Natural (white) insulation color, single row, all 11 positions loaded.
1.25mm pitch, 11 positions, single row, all loaded.
