Three-position low-profile tap for board-edge wiring
The 5023860370: The 0.049" (1.25 mm) pitch and 0.215" (5.45 mm) insulation height keep the mated stack low, suiting it for tight enclosures in automotive, industrial, lighting, and medical gear.

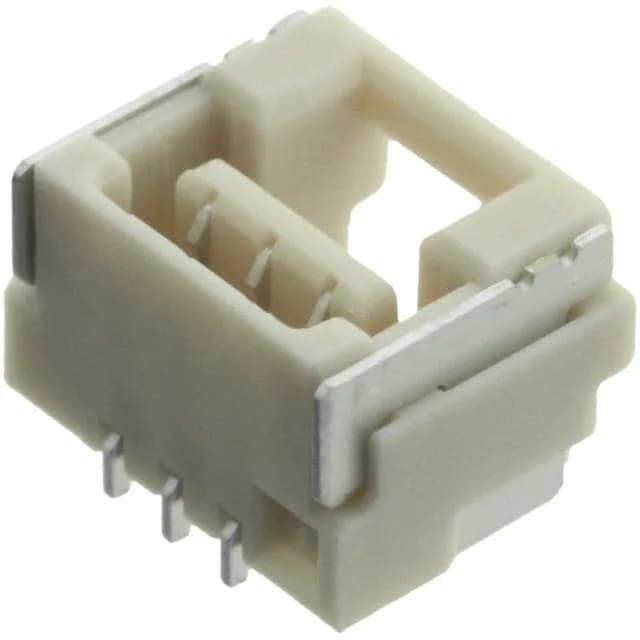

Molex 5023860370 – CLIK-Mate 1.25mm 3-Position R/A SMT
MPN5023860370
Active
Molex CLIK-Mate 502386, 3-position single-row receptacle, 0.049" (1.25 mm) pitch, surface-mount right-angle, tin-plated forked contacts, latch holder, 1 A per contact, 50 V, -40°C to 105°C, UL94 V-0 natural resin housing, solder retention features.
$0.7500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIK-Mate 502386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502386 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Resin |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Product details
Frequently asked questions
What is the pitch and position count of the 5023860370?
The 5023860370 is a 3-position, single-row receptacle with a 0.049" (1.25 mm) mating pitch.
