Molex 5023860571

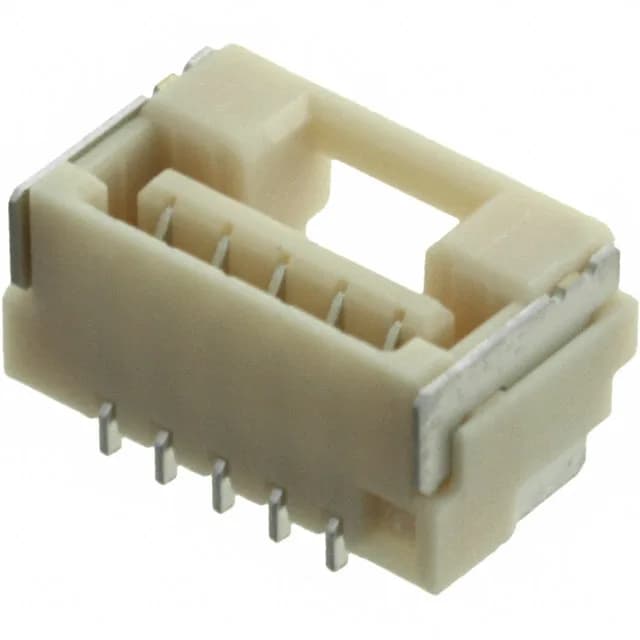

Molex 5023860571 CLIK-Mate 1.25mm Receptacle 5 Pos SMT R/A

MPN 5023860571
Active

Molex CLIK-Mate 502386 series, 5023860571, 5-position single-row receptacle, 1.25mm pitch, SMT right-angle, gold mating contacts, 1 A at 50 V, solder retention, UL94 V-0, -40°C to 105°C.

$1.1200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 502386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5023860571 key specifications
ParameterValue
SeriesCLIK-Mate 502386
TypeForked
MountingSurface Mount, Right Angle
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating50V
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.215\" (5.45mm)
Insulation materialResin

All specifications

5023860571 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.049\" (1.25mm)
Positions5
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

1.25 mm pitch, 5-position SMT right-angle receptacle

The Molex 5023860571 is a 5-position, single-row receptacle from the CLIK-Mate 502386 series, designed for board-to-cable/wire applications. Gold plating on the mating contacts (3.90 µin) and tin on the posts (39.4 µin) give it a reliable signal path for moderate-cycle applications — the gold side handles the mating wear, the tin side takes the solder joint.

Solder retention and latch holder

The forked contact type provides a compliant beam that wipes the header pin on insertion, keeping contact resistance stable across the rated temperature range.
