Molex 5023860572

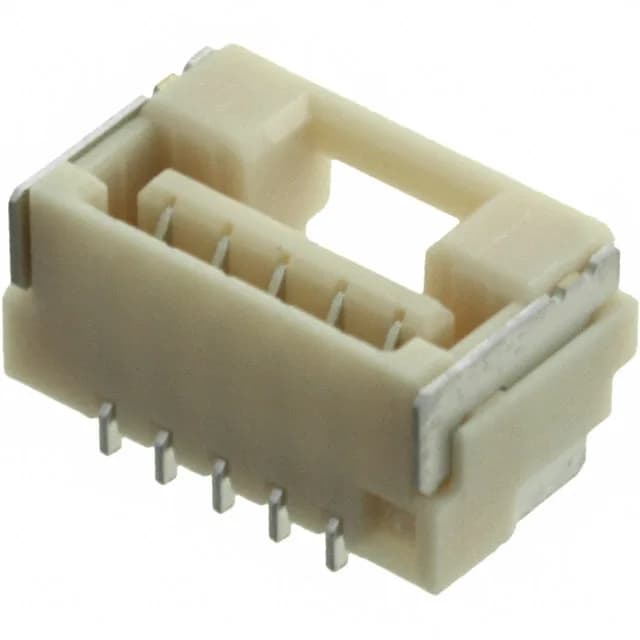

Molex 5023860572 CLIK-Mate 1.25mm 5-Pin Receptacle

MPN 5023860572
Active

Molex CLIK-Mate 502386, Board to Cable/Wire receptacle, 5 positions, 1.25mm pitch, SMT right-angle, Tin contacts, Latch Holder, 1A, 50V, UL94 V-0, -40°C ~ 105°C.

$1.4900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 502386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5023860572 key specifications
ParameterValue
SeriesCLIK-Mate 502386
TypeForked
MountingSurface Mount, Right Angle
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating50V
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.215\" (5.45mm)
Insulation materialResin

All specifications

5023860572 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.049\" (1.25mm)
Positions5
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

It's the board-mount half that mates with a corresponding cable plug. The 1.25mm pitch and right-angle SMT orientation make it a compact choice for edge-mounting on a PCB, saving space in tight enclosures.

Pick-and-place compatible with solder retention features, this part is ready for automated SMT assembly.
