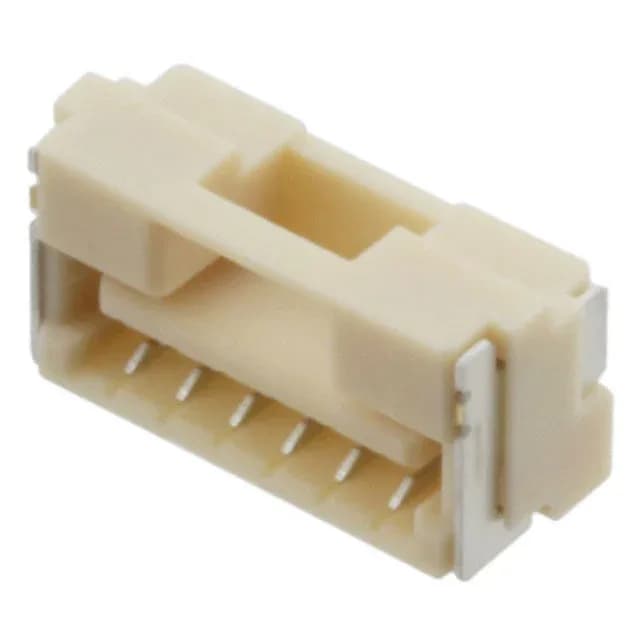

Molex CLIK-Mate 502386, 6-position receptacle, 1.25mm pitch, SMT right-angle, tin-plated forked contacts, latch holder, 1A/50V, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502386 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The natural insulation color and 0.215" (5.45mm) insulation height are visual and dimensional references for panel clearance and assembly verification.
The forked contact type accepts the mating header's pins; confirm the header's circuit count and pitch (1.25mm) match before committing the BOM.
The 5023860670 mates with a CLIK-Mate 502386 series pin header of the same 1.25mm pitch and 6-position count. Confirm the header's orientation (straight or right-angle) and mounting style (SMT or through-hole) to match your assembly.
Yes, the 5023860670 is ROHS3 compliant, covering the current RoHS substance restrictions.
The current rating is 1A per contact at the rated voltage of 50V. This is a signal-level interconnect; derate if ambient temperature approaches the 105°C upper limit.
