Molex 5023860870

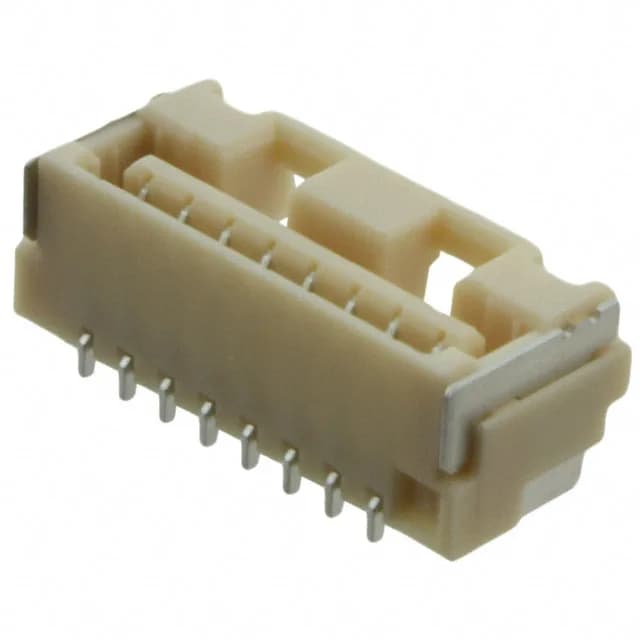

Molex 5023860870 CLIK-Mate 8-Pin Receptacle, 1.25mm Pitch

MPN 5023860870
Active

Molex CLIK-Mate 5023860870, 8-position single-row receptacle, 1.25mm pitch, surface-mount right-angle, tin-plated forked contacts, rated 1 A at 50 V, latch holder, UL94 V-0

$0.8300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 502386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5023860870 key specifications
ParameterValue
SeriesCLIK-Mate 502386
TypeForked
MountingSurface Mount, Right Angle
Connector typeReceptacle
Fastening typeLatch Holder
Voltage rating50V
Current rating1A
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.215\" (5.45mm)
Insulation materialResin

All specifications

5023860870 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.049\" (1.25mm)
Positions8
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

What this 8-position right-angle receptacle does

The 5023860870: This is an 8-position single-row receptacle from the Molex CLIK-Mate 502386 series, pitched at 1.25mm and terminated by surface-mount soldering in a right-angle orientation.

Where it fits: applications and environment

The 1 A rating at 50 V suits signal-level interconnects — think sensor harnesses, control panel wiring, or low-power board-to-cable links.

It shares the same 1.25mm pitch, tin plating, right-angle SMT termination, latch holder, and 1 A/50 V rating. If your BOM calls for 8, this is the one; if you need 9, step up to 5023860970.
