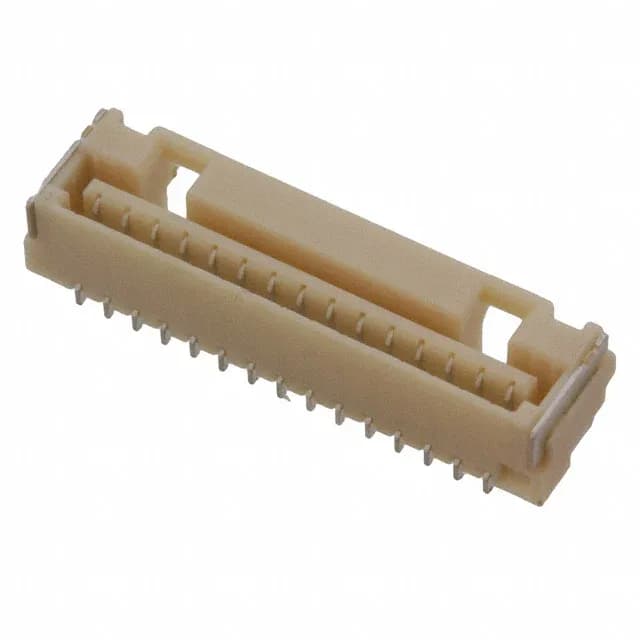

15-position right-angle SMT receptacle for wire-to-board
Rated at 1A per contact and 50V, with tin-plated mating surfaces (39.4µin thickness) and a UL94 V-0 resin housing.
The 1.25mm pitch and 15 positions define the PCB footprint: a single row of SMT pads with a right-angle body. The insulation height of 0.215" (5.45mm) sets the component keep-out zone on the board. The latch holder fastening type and solder retention feature provide mechanical security during reflow and mating, reducing the risk of tombstoning or shear failure from cable strain.
No stock-holding claim — availability varies by distributor.
This receptacle mates with Molex CLIK-Mate 502386 series pin headers (male, 1.25mm pitch, single row). Termination is solder to the SMT pads; the forked contact type provides a compliant beam that wipes the header pin on insertion.
