Molex SlimStack 502426 series receptacle, 14 circuits, 0.40mm pitch, dual-row, surface-mount, gold-plated contacts, 1mm mated stack height, with solder retention features.
| Parameter | Value |
|---|---|
| Series | SlimStack 502426 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.039\" (1.00mm) |
| Mated stacking heights | 1mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 14 |
| Contact finish thickness | 4.00µin (0.100µm) |

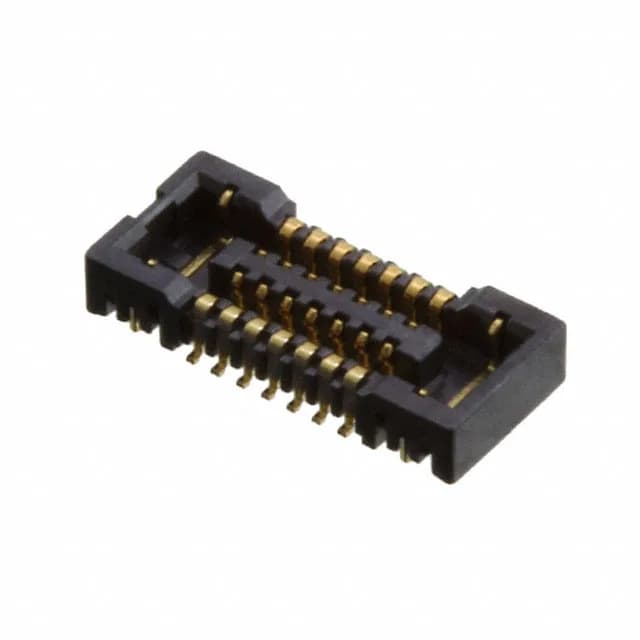

The 5024261430: This is a Molex SlimStack 502426 series receptacle, center strip contacts, 14 positions in two rows at 0.40mm pitch. The gold plating at 4.00µin on the contacts handles moderate mating cycles without fretting in field-service swaps.
For a 0.40mm-pitch part with no through-hole anchors, this is what keeps the solder joints from lifting during thermal cycling.
1mm mated stack height, with the receptacle sitting 0.039" (1.00mm) above the board.
Yes, the housing includes solder retention features to anchor the connector during reflow and resist shear forces.
Yes, ROHS3 compliant.
