The 5024263230: This 32-position receptacle from the SlimStack 502426 series mates at a fixed 1mm stack height, which is the dimension that governs the gap between parallel PCBs in a mezzanine configuration. The 0.40mm pitch forces tight trace routing on the board — expect 0.20mm trace/space minimums for a two-layer fan-out.

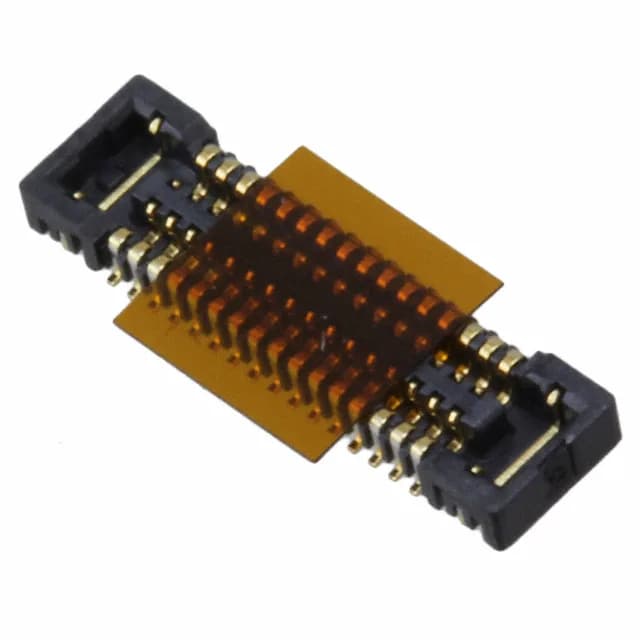

5024263230 Molex SlimStack 32 Pos 0.40mm Pitch Receptacle
MPN5024263230
Active
Molex SlimStack 502426 series, 32-position receptacle, 0.016" (0.40mm) pitch, 2 rows, 1mm mated stack height, gold-plated center strip contacts, surface mount with solder retention, tape and reel packaging.
$1.7900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSlimStack 502426
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SlimStack 502426 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.039\" (1.00mm) |
| Mated stacking heights | 1mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 32 |
| Contact finish thickness | 4.00µin (0.100µm) |
Product details
Frequently asked questions
What is the mating connector for 5024263230?
The mating half is a SlimStack 502426 series header with center strip contacts, same 0.40mm pitch and 32 positions. The mated stack height is 1mm — confirm the header's height above board to ensure the pair hits that dimension.
