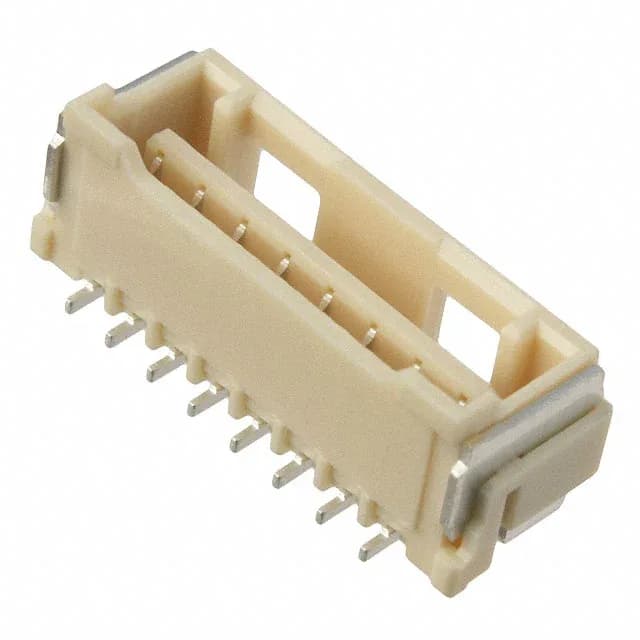

Molex CLIK-Mate 502443 series, 8-position single-row receptacle, 2.00 mm pitch, tin-plated forked contacts, SMT with solder retention, latch holder fastening, rated 3 A per contact at 250 V, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502443 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.293\" (7.44mm) |
| Insulation material | Resin |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Tin is a good fit for moderate mating-cycle duty — expect reliable performance in automotive, industrial, lighting, and medical equipment where the connector stays mated for long periods.
Insulation height is 0.293 inches (7.44 mm), which clears most common components on the board.
The pitch is 2.00 mm (0.079 inches) with 8 positions in a single row. All positions are loaded.
