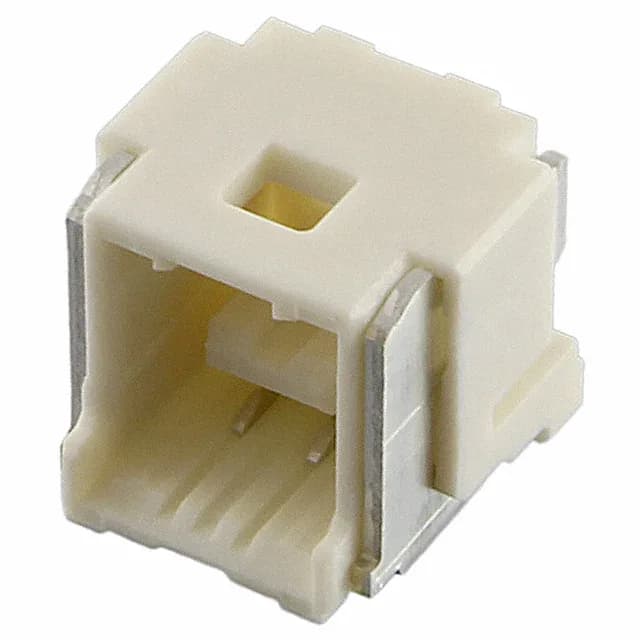

Molex 5025840260 — Female Socket Headers

5025840260 Molex CLIK-Mate 1.50mm Receptacle, 2 Pos, SMT

MPN5025840260
Active

Molex CLIK-Mate 502584, order code 5025840260, board-to-cable/wire receptacle, 2 positions, single row, 0.059" (1.50 mm) pitch, tin-plated mating contacts, surface mount, solder termination, latch holder fastening.

$0.9200Ref. price · indicative, final on quote
Molex 5025840260 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCLIK-Mate 502584
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5025840260 key specifications
ParameterValue
SeriesCLIK-Mate 502584
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.287\" (7.30mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

5025840260 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.059\" (1.50mm)
Positions2
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

Board footprint and pitch

The 5025840260: The 0.059" (1.50 mm) pitch sets the pad spacing on the PCB — that's the dimension to check against your routing density.

Latch retention and vibration duty

ROHS3 compliant; housing material is UL94 V-0 rated polyamide.

Cross-shop: 5025840260 vs 5025840360

The 5025840360 is the 3-position sibling in the same CLIK-Mate 502584 series — same 1.50 mm pitch, same tin plating, same latch holder. The only difference is circuit count: 2 positions here, 3 on the 0360.

Frequently asked questions

What is the pitch of Molex 5025840260?

0.059" (1.50 mm) pitch, single row, 2 positions.

Is 5025840260 RoHS compliant?

Yes, ROHS3 compliant per the listing.

Does 5025840260 have a latch?

Yes, fastening type is latch holder — it locks the receptacle to the mating header.
