Molex 5025840560

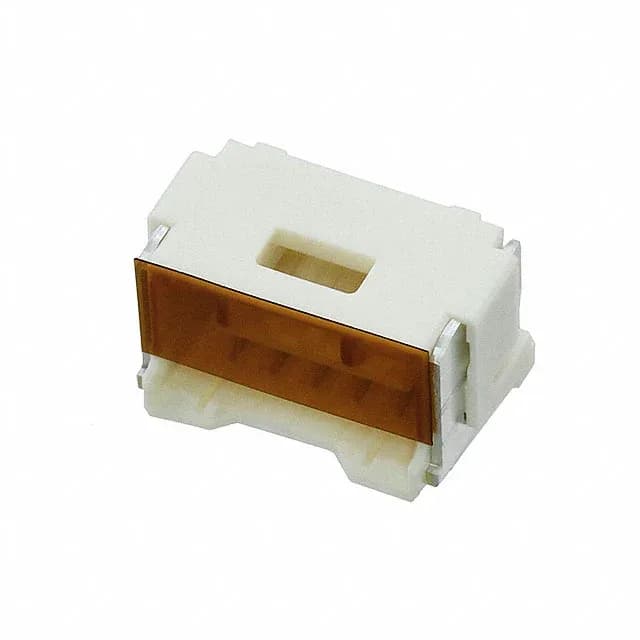

Molex 5025840560 CLIK-Mate 1.50mm 5-Pin Receptacle SMT

MPN 5025840560
Active

Molex CLIK-Mate 502584 series, 5025840560, Board to Cable/Wire receptacle, 5 positions, 1.50mm pitch, SMT, tin-plated contacts, latch holder, UL94 V-0, -40°C to 105°C, ROHS3 compliant.

$1.1300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 502584
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5025840560 key specifications
ParameterValue
SeriesCLIK-Mate 502584
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.287\" (7.30mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

5025840560 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.059\" (1.50mm)
Positions5
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

Connector identity and board fit

Mating header and assembly BOM

This receptacle mates with the Molex CLIK-Mate 502578 series pin header — a single-row, 1.50 mm pitch, SMT header with latch retention. Build-to-print needs both halves; the header is sold separately. The forked contact design accepts the mating pin header's flat blade.

MPN
5025840560
