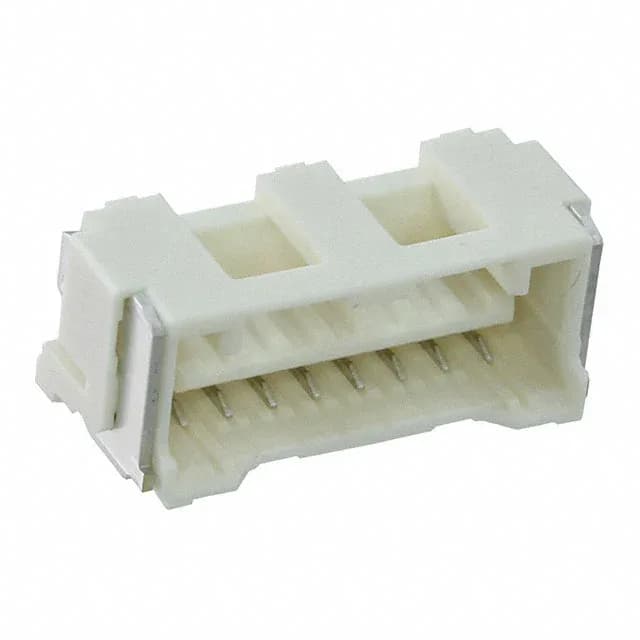

Molex CLIK-Mate 502584 series, 5025840870 — 1.50mm pitch, 8-position, single-row receptacle, tin-plated contacts, SMT, latch holder, active production.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 502584 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.287\" (7.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5025840870: This is a 1.50mm pitch, 8-position, single-row receptacle from the Molex CLIK-Mate 502584 series — the mating half is a 1.50mm pitch header with latch holder.
Surface-mount termination with pick-and-place and solder retention features — the forked contact design suits wire-to-board applications.
0.059" (1.50mm) pitch, 8 positions, single row, all positions loaded.
Yes, ROHS3 compliant per the evidence.
It mates with a 1.50mm pitch CLIK-Mate header that has a latch holder — the same series, 502584, with the matching pin count.
