Right-angle SMT, 1.50mm pitch — board-fit reality

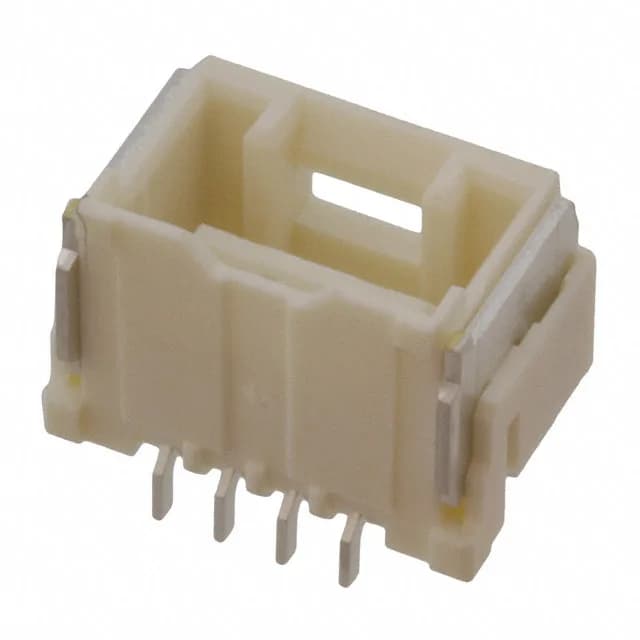

The 5025850470: This is a 4-position, single-row receptacle from the Molex CLIK-Mate 502585 series, pitched at 1.50mm and terminated by surface-mount solder. The latch holder fastening keeps the mated pair locked without a screw or tool, which helps in vibration environments like automotive or industrial cabinets.
Mates with the Molex CLIK-Mate 502585 series pin header (male) of the same 4-position, 1.50mm pitch layout. The receptacle uses forked contacts that accept the header's flat pins. Termination is solder-only — the SMT pads are designed for reflow assembly. The housing includes pick-and-place features and solder retention for automated placement.
