23-position FPC connector at 0.30 mm pitch

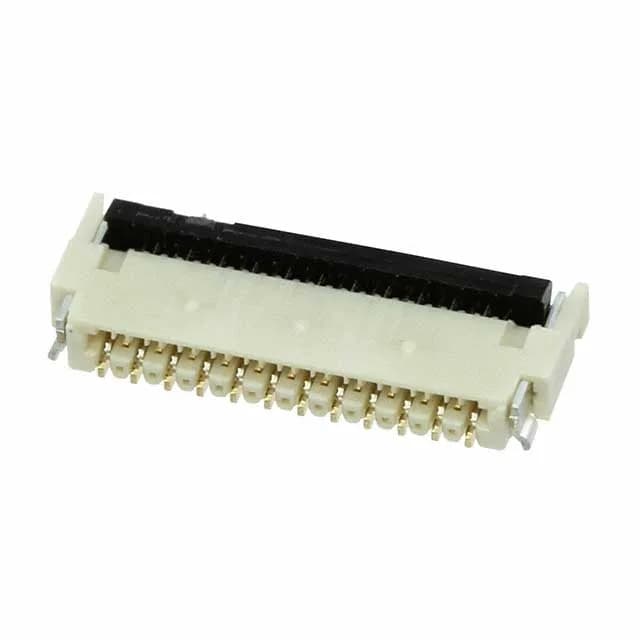

Molex 5025982393 is a 23-position, 0.30 mm pitch FPC connector from the BackFlip / Easy-On 502598 series. It uses a flip-lock and backlock actuator to secure the FPC, and the contacts wipe both top and bottom of the cable pad. Rated at 0.2 A per contact and 50 V, this is a signal-only interconnect — not for power. The gold flash contact finish (3.94 µin) supports the 10 mating cycle life, enough for one assembly and occasional field service.
Pitch, FPC thickness, and board fit
The right-angle surface-mount orientation keeps the mated height at 1.14 mm above the board — useful for slim enclosures.
