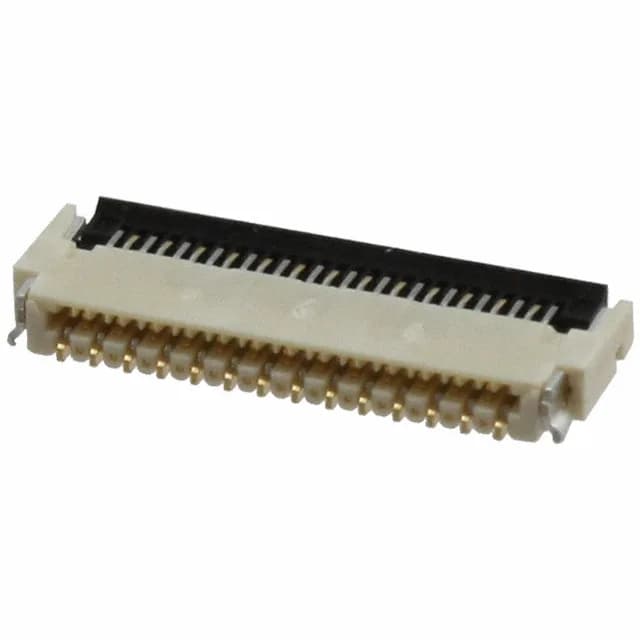

Molex Easy-On BackFlip 502598, FPC connector, 27 circuits, 0.30mm pitch, 0.2A per contact, gold plating, SMT right-angle, flip-lock actuator, active production.
| Parameter | Value |
|---|---|
| Series | BackFlip, Easy-On 502598 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 0.2A |
| Operating temperature | -40°C ~ 105°C |
| Housing color | White |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.045\" (1.14mm) |
| Material flammability rating | UL94 V-0, UL94 HB |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.20mm |
| Positions | 27 |
| Contact finish thickness | 3.94µin (0.10µm) |
The 5025982793: This is a 27-position FPC connector on 0.012" (0.30mm) pitch from the Molex BackFlip / Easy-On 502598 series — the tightest pitch in the Easy-On family, which means the board footprint is dense and the FPC must be exactly 0.20mm thick to seat properly.
The flip-lock actuator (Backlock style) secures the FPC without a secondary latch — the actuator wipes the contact pads on closure and holds the cable in place under vibration.
It accepts FPC with a thickness of 0.20mm. The cable end type is tapered, which aids insertion into the flip-lock actuator.
The base product number is 502598; any alternative must match the 0.30mm pitch, 27 positions, and flip-lock actuation.
