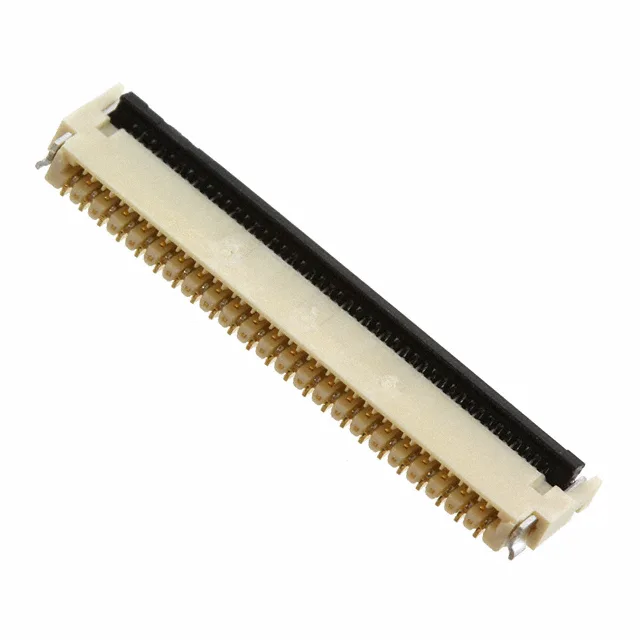

Molex 5025984593 FPC Connector, 45 Pos, 0.30 mm Pitch

MPN5025984593
Active

Molex Easy-On 502598, BackFlip series, 45-position FPC connector, 0.30 mm pitch, right-angle surface mount, gold-plated contacts, 0.2 A per contact, 50 V rating, flip-lock actuator.

$1.9700Ref. price · indicative, final on quote
5025984593 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5025984593 Technical Specifications
ParameterValue
SeriesBackFlip, Easy-On 502598
Mounting typeSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Top and Bottom
Voltage rating50V
Current rating0.2A
Operating temperature-40°C ~ 105°C
Housing colorWhite
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.045\" (1.14mm)
Material flammability ratingUL94 V-0, UL94 HB
Pitch0.012\" (0.30mm)
FeaturesSolder Retention
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
ManufacturerMolex
Mating cycles10
Contact finishGold
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.20mm
Positions45
Contact finish thickness3.94µin (0.10µm)

Product details

45-Position FPC Connector at 0.30 mm Pitch

The Molex 5025984593 is a 45-position FPC connector from the Easy-On 502598 series, with a 0.30 mm pitch that sets the board footprint and limits per-contact current to 0.2 A — strictly a signal-path connector, not for power.

Flip-Lock Actuator and FPC Fit

The flip-lock actuator (black polyamide) secures the FPC with a backlock mechanism — no secondary latch needed, simplifying assembly in high-volume pick-and-place lines. Accepts 0.20 mm thick FPC with tapered cable end; contacts on both top and bottom allow either-side insertion, reducing orientation errors during manual assembly.
