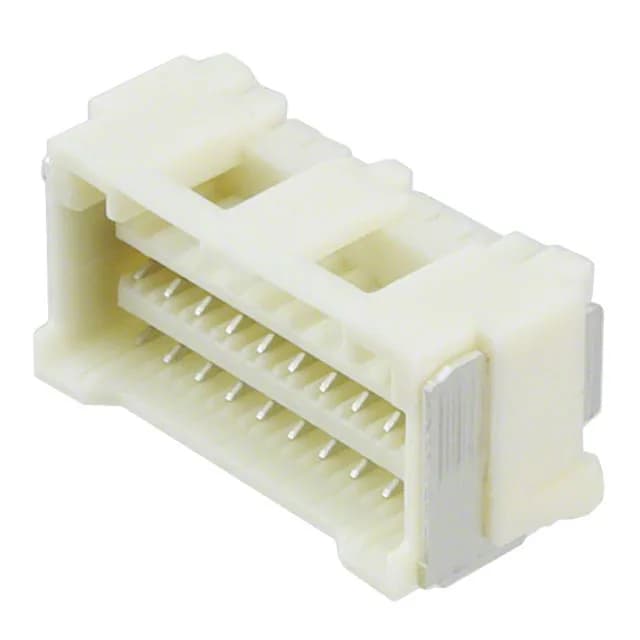

Molex CLIK-Mate 503148 series, 5031482090, board-to-cable/wire receptacle, 20 circuits, 2 rows, 1.50 mm pitch, right-angle SMT, tin-plated forked contacts, latch holder, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 503148 |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Resin |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 20 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 1.50 mm pitch and right-angle SMT orientation make it a compact, low-profile interconnect for space-constrained PCBs. The latch holder fastening type keeps the mated header locked under vibration, which is a practical advantage in automotive, industrial, and lighting environments where the cable assembly might get tugged or shaken.
The 5031482090 receptacle mates with Molex CLIK-Mate 503148 series pin headers that have a 1.50 mm pitch, dual-row configuration, and latch-compatible housing. Confirm the header's part number against your BOM — the mating half must be from the same series for proper lock and alignment.
The pitch is 1.50 mm (0.059 inches), with 20 positions arranged in 2 rows. It is a surface-mount, right-angle receptacle for board-to-cable/wire connections.
The 5031482090 is an active part with no listed successor. For a pin-compatible alternative, look for other CLIK-Mate 503148 series receptacles with the same pitch, row count, and position count, but verify the latch holder and orientation match your design.
