Molex 5031493400

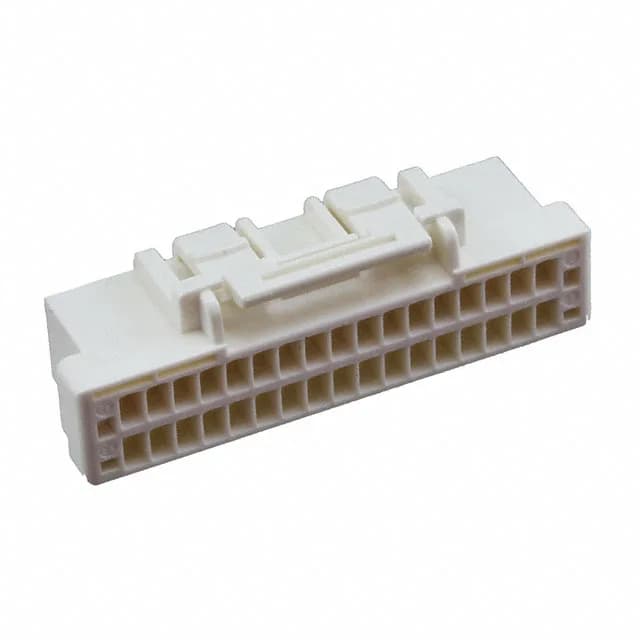

Molex CLIK-Mate 5031493400 Plug Housing, 34 Pos, 1.50mm

MPN 5031493400
Active

Molex CLIK-Mate 503149 series, plug housing, 34 positions, 2 rows, 1.50mm pitch, free-hanging, latch lock, crimp termination, beige PBT, -40°C to 105°C.

$1.1800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 503149
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5031493400 specifications
ParameterValue
SeriesCLIK-Mate 503149
TypeNon-Gendered
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBeige
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.059\" (1.50mm)
PackageBulk
Rows2
Contact terminationCrimp
Positions34

Product details

34-Circuit Plug Housing for Wire Harness Assembly

The Molex 5031493400 is a 34-position plug housing from the CLIK-Mate 503149 series, designed as the cable-side half of a wire-to-board interconnect.

The CLIK-Mate 503149 series uses a non-gendered contact design, meaning the same terminal fits both plug and receptacle housings. For a complete mated pair, order the receptacle housing (same series, matching position count) and the required number of crimp terminals plus the wire seals if the application calls for it. Termination is crimp-style, so you will also need the correct applicator tool or hand-crimp frame for the wire gauge range the terminal supports.

MPN
5031493400
