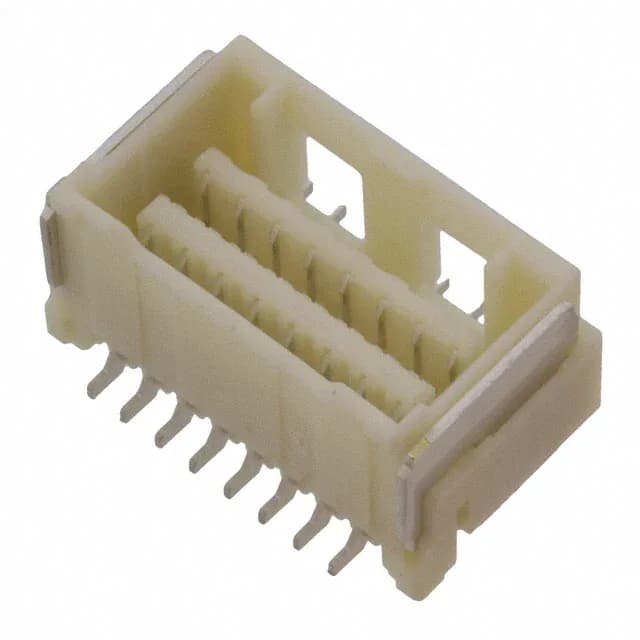

Molex CLIK-Mate 503154 series, 16-position dual-row receptacle, 1.50mm pitch, SMT, tin-plated contacts, board-to-cable/wire style, -40°C to 105°C operating range
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 503154 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.344\" (8.75mm) |
| Insulation material | Resin |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 2 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Molex 5031541690 is a 16-position, dual-row receptacle from the CLIK-Mate 503154 series, designed for board-to-cable/wire applications. It uses a 1.50mm pitch and surface-mount termination with solder retention and pick-and-place features for automated assembly.
This receptacle mates with a Molex CLIK-Mate 503154 series header of matching 1.50mm pitch, 16 positions, dual-row. Confirm the header part number from the same series for a guaranteed fit.
Yes, it is listed as ROHS3 Compliant.
