Molex 5031542090

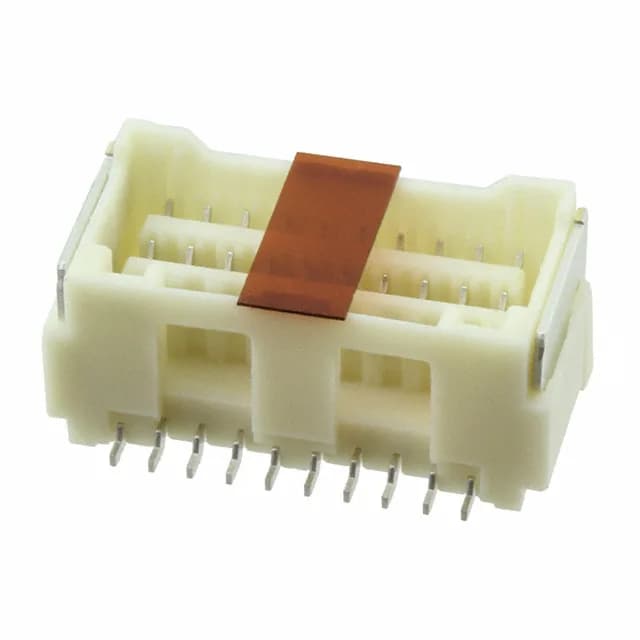

Molex 5031542090 – 20-Pin 1.50mm Pitch Receptacle, CLIK-Mate

MPN 5031542090
Active

Molex CLIK-Mate 503154 series, 5031542090, 20-position dual-row receptacle, 1.50mm pitch, tin-plated forked contacts, SMT with latch holder, -40°C to 105°C, UL94 V-0 beige resin housing.

$2.6300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 503154
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5031542090 key specifications
ParameterValue
SeriesCLIK-Mate 503154
TypeForked
MountingSurface Mount
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.344\" (8.75mm)
Insulation materialResin
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5031542090 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows2
Pitch0.059\" (1.50mm)
Positions20
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

20-position, 1.50mm pitch wire-to-board receptacle

The 1.50mm pitch and latch holder fastening make it a compact but secure interconnect for environments where vibration could loosen a friction-only connector.

SMT assembly with pick-and-place and solder retention

Surface-mount termination with integrated pick-and-place and solder retention features streamlines automated assembly.
