Molex 5031591200

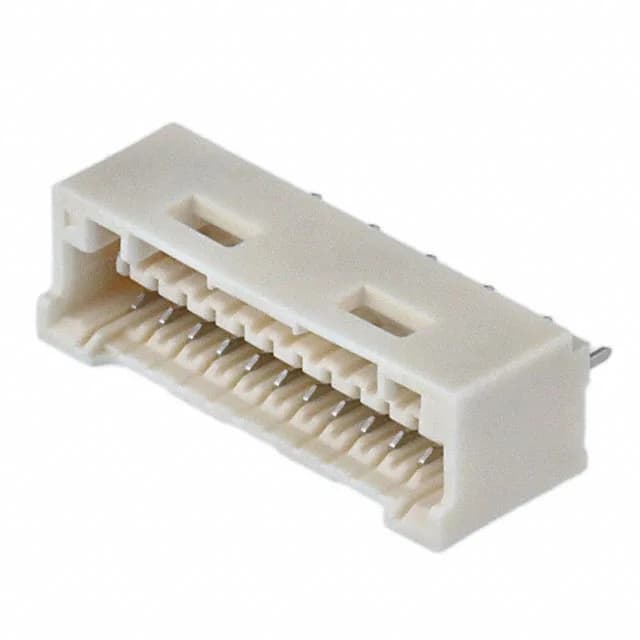

Molex 5031591200 CLIK-Mate 1.50 mm Receptacle, 12 Pos, Tin

MPN 5031591200
Active

Molex CLIK-Mate 503159, 12-position single-row receptacle, 1.50 mm pitch, tin-plated forked contacts, through-hole kinked-pin solder termination, latch holder fastening, board guide, UL94 V-0 beige nylon housing, -40°C to 105°C operating range.

$1.0500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesCLIK-Mate 503159
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5031591200 key specifications
ParameterValue
SeriesCLIK-Mate 503159
TypeForked
MountingThrough Hole
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBeige
Insulation height0.313\" (7.95mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5031591200 additional specifications
ParameterValue
PackageTray
FeaturesBoard Guide
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Medical
Rows1
Pitch0.059\" (1.50mm)
Positions12
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

12-position, 1.50 mm pitch — not a 0.100" header

The 5031591200: This is a 12-circuit, single-row receptacle on 1.50 mm pitch — not the 2.54 mm you might expect from a legacy wire-to-board connector. The tighter pitch saves board real estate but demands a matching 1.50 mm header; a 0.100" header will not mate. Tin works well when the mated pair stays undisturbed; for frequent reconnects, consider the gold-plated sibling in the same series.

Latch holder and board guide lock the pair

The board guide aligns the receptacle during assembly, taking shear off the contacts before the latch engages. The through-hole kinked-pin termination provides stronger solder-joint retention than a straight pin in high-vibration environments — the kink resists pull-out forces from the cable side.

Rated for automotive and industrial thermal profiles

Molex lists applications including Automotive, General Purpose, Industrial, Lighting, and Medical — the part is qualified for those sectors, not just a general-purpose part that might work.
