Board-to-cable receptacle for wire harness assembly
The 5033950610: It uses a 1.50 mm pitch with tin-plated forked contacts rated for general-purpose, automotive, lighting, and industrial environments.

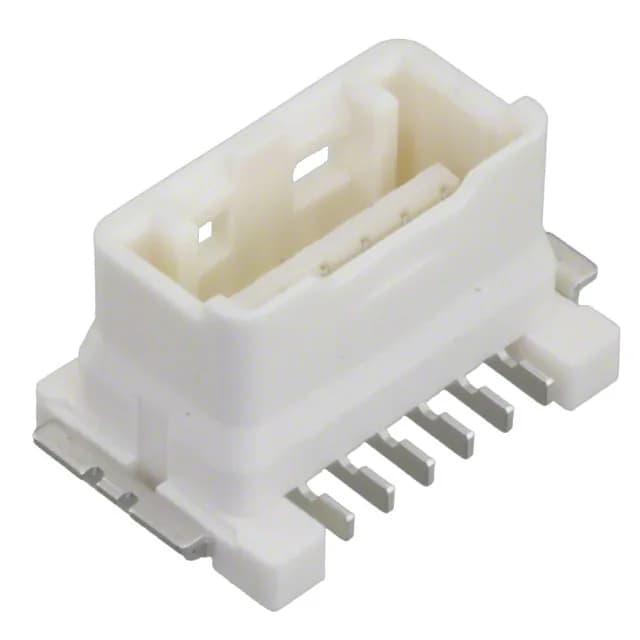

Molex 5033950610 CLIK-Mate Receptacle, 6 Pos, 1.50 mm, Tin
MPN5033950610
Active
Molex CLIK-Mate 503395 series, 5033950610, board-to-cable receptacle, 6 positions, 1.50 mm pitch, tin-plated forked contacts, SMT with latch holder, UL94 V-0 beige PA46 housing.
$2.1300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCLIK-Mate 503395
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 503395 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Product details
Frequently asked questions
What is the mating header for 5033950610?
Confirm the header part number from the same series to ensure latch holder compatibility.
