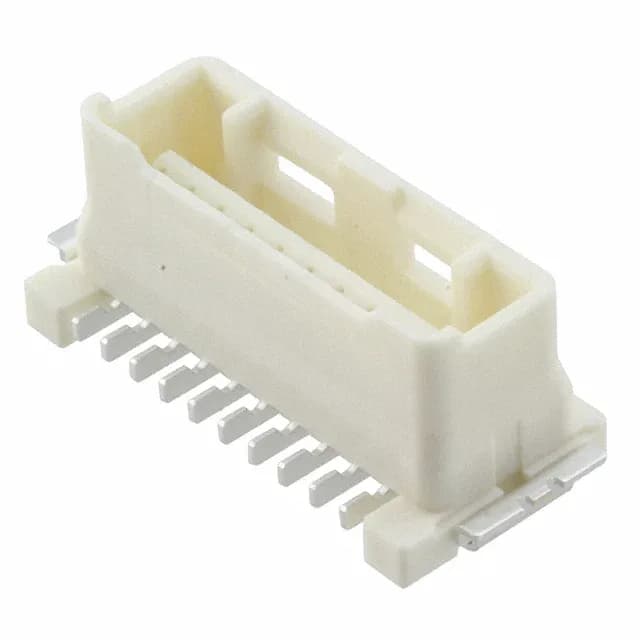

Molex CLIK-Mate 503395, 5033951010, Board to Cable/Wire receptacle, 10 positions, 0.059" (1.50 mm) pitch, surface mount, tin-plated forked contacts, latch holder fastening, solder retention, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | CLIK-Mate 503395 |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The 5033951010 is a 10-position, single-row receptacle from the Molex CLIK-Mate 503395 series, designed for board-to-cable/wire interconnects on a 0.059" (1.50 mm) pitch.
The insulation height of 0.350" (8.89 mm) and beige polyamide (PA46) housing with UL94 V-0 flammability rating allow the connector to sit within standard enclosure clearances.
The 5033951010 mates with a Molex CLIK-Mate 503395 series male header (same pitch and position count). Confirm the header order code against your board footprint before ordering.
The mating pitch is 0.059" (1.50 mm). This is the centre-to-centre spacing between adjacent contacts.
