0.50mm pitch, 12-position FFC/FPC connector

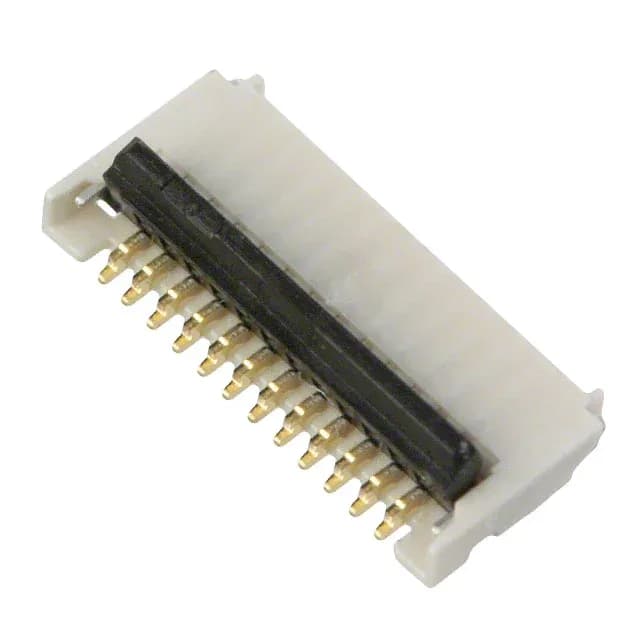

Molex 5034801200 is a 12-position, 0.50mm pitch FFC/FPC connector from the BackFlip Easy-On 503480 FHB1 series. It terminates via SMT in a right-angle orientation, standing 1.00mm above the board. The housing is white LCP with a black PA actuator; contacts are gold-plated phosphor bronze, rated 0.5A per circuit at 50V. The connector accepts 0.30mm thick FFC or FPC cable and contacts both top and bottom conductors, so the cable can be inserted with either side facing up. The flip-lock actuator secures the flex without requiring a separate latch.
10 mating cycles and signal-level current
The 0.5A per-contact rating keeps it in signal-level territory; it handles data lines, sensor inputs, and low-power display links but not power delivery. The 0.50mm pitch and 1.00mm seated height make it a compact choice for space-constrained PCBs, typical in handheld devices, portable instruments, and embedded displays.
