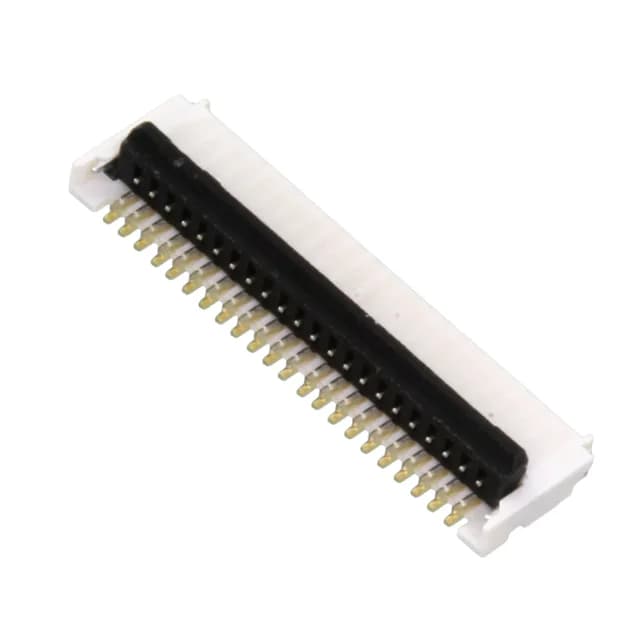

Molex 5034802200 FFC/FPC Connector, 22 Pos, 0.5mm Pitch

MPN5034802200
Active

Molex, BackFlip / Easy-On 503480 FHB1 series, FFC/FPC connector, 22 positions, 0.50 mm pitch, right-angle SMT, flip lock actuator, 0.5 A per contact, 50 V rating, gold-plated contacts.

$1.9600Ref. price · indicative, final on quote
Molex 5034802200 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBackFlip, Easy-On 503480 FHB1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5034802200 key specifications
ParameterValue
SeriesBackFlip, Easy-On 503480 FHB1
MountingSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top and Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Housing colorWhite
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5034802200 additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.039\" (1.00mm)
Material flammability ratingUL94 V-0, UL94 HB
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Mating cycles10
Contact finishGold
Locking featureFlip Lock, Backlock
FFC, FCB thickness0.30mm
Positions22
Contact finish thickness3.94µin (0.10µm)

Product details

22-position 0.50 mm pitch FFC connector for tight board layouts

The Molex 5034802200 is a 22-position, 0.50 mm pitch FFC/FPC connector from the BackFlip / Easy-On 503480 FHB1 series. It mounts right-angle to the board via SMT, with gold-plated phosphor bronze contacts rated at 0.5 A and 50 V. The flip lock and backlock actuator secures the FFC without a secondary latch.

Flip lock actuator and solder retention for reliable assembly

The actuator uses a flip lock and backlock design, which clamps the FFC against top and bottom contacts. The housing is white LCP with a UL94 V-0 rating, and the actuator is black glass-filled nylon.
