Molex 5035481022

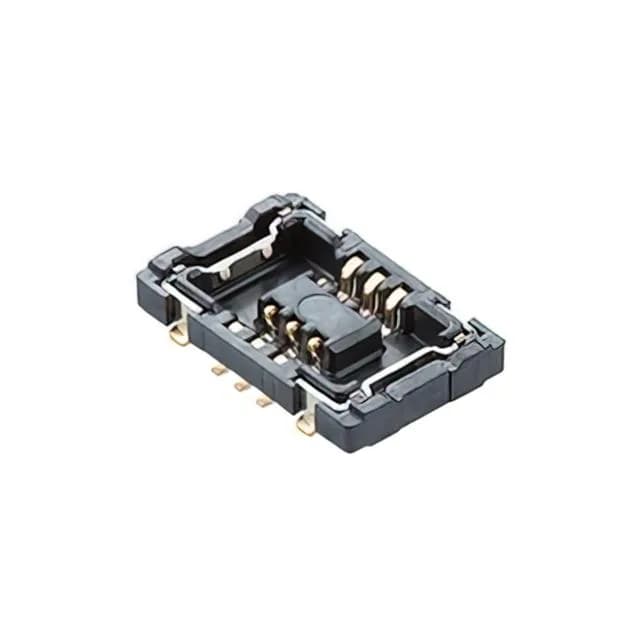

Molex 5035481022 SlimStack 0.40mm Pitch, 10-Circuit

MPN 5035481022
Active

Molex SlimStack 503548 series, receptacle, center strip contacts, 10 positions, 2 rows, 0.016" (0.40mm) pitch, surface mount, gold contact finish, 0.027" (0.68mm) height above board.

$0.7000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 503548
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5035481022 specifications
ParameterValue
SeriesSlimStack 503548
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.027\" (0.68mm)
Mated stacking heights0.7mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
Contact finishGold
Rows2
Positions10

Product details

What this 10-circuit SlimStack receptacle is

The Molex 5035481022 is the 10-position member of the SlimStack 503548 series — a fine-pitch board-to-board receptacle with center strip contacts. Typical use: mezzanine interconnects in handheld devices, portable electronics, or any assembly where board real estate and vertical clearance are both constrained.

The receptacle itself sits 0.68 mm above the board (the height above board spec), so the total stack includes the mating plug's own height on the opposite board. Solder retention features and a pick-and-place pad simplify automated assembly on the SMT line.

MPN
5035481022
