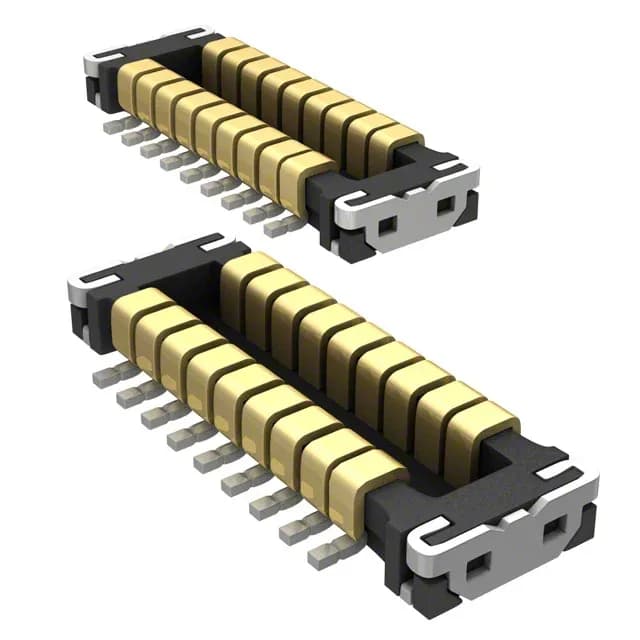

Molex SlimStack 5035521822, 18-Pos Plug, 0.40mm Pitch

MPN 5035521822
Active

Molex SlimStack 503552 series, 5035521822, plug outer shroud contacts, 18 positions, 2 rows, 0.016" (0.40mm) pitch, surface mount, gold contact finish, 0.023" (0.59mm) height above board, 0.7mm mated stacking height.

$0.7522 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 503552
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5035521822 specifications
ParameterValue
SeriesSlimStack 503552
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.023\" (0.59mm)
Mated stacking heights0.7mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
Contact finishGold
Rows2
Positions18

Product details

0.40 mm pitch, 18-position plug for tight mezzanine stacks

Its defining dimensions are the 0.016" (0.40 mm) pitch — which sets the board footprint density — and the 0.023" (0.59 mm) height above board, which mates to a 0.7 mm stacking height. This puts it in the ultra-low-profile class, suited for handheld or compact embedded assemblies where every tenth of a millimeter of z-height is budgeted. The connector uses a plug with outer shroud contacts, meaning the signal contacts are recessed within a plastic shroud that guides alignment during mating and protects the contacts from mechanical damage before assembly. Surface-mount termination and the inclusion of pick-and-place features and solder retention tabs mean this part is designed for automated high-volume assembly. The solder retention features hold the connector in place during reflow, preventing tombstoning or shift on the pad.

Confirm the receptacle order code matches the same 18-position, 0.40 mm pitch layout.
