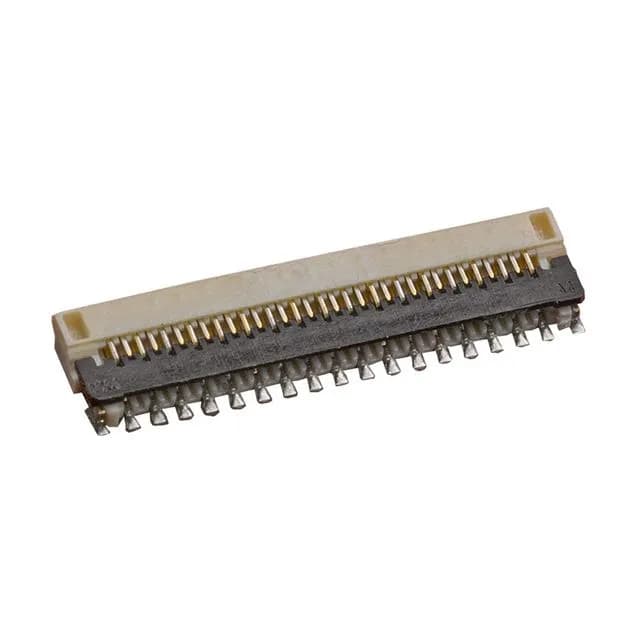

5035661102 Molex Easy-On 0.30mm FPC Connector, 11 Pos

MPN5035661102
Active

Molex Easy-On 503566 series, 5035661102, 11-position FPC connector, 0.30mm pitch, bottom contact, right-angle SMT, gold-plated phosphor bronze contacts, flip lock actuator, solder retention, 0.2A, 50V, 10 mating cycles, -40°C to 105°C.

$0.8200Ref. price · indicative, final on quote
Molex 5035661102 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEasy-On 503566
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5035661102 key specifications
ParameterValue
SeriesEasy-On 503566
MountingSurface Mount, Right Angle
Cable end typeTabbed
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.2A
Operating temperature-40°C ~ 105°C
Housing colorWhite
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

5035661102 additional specifications
ParameterValue
Actuator materialPolyamide (PA), Nylon, Glass Filled
Height above board0.037\" (0.95mm)
Material flammability ratingUL94 V-0, UL94 HB
Pitch0.012\" (0.30mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
TerminationSolder
Mating cycles10
Contact finishGold
Locking featureFlip Lock
FFC, FCB thickness0.20mm
Positions11

Product details

Footprint fit and routing density

The 5035661102: This 11-position FPC connector uses a 0.30mm pitch, which is the tightest in the Easy-On 503566 series. At 0.2A per contact, this part is suited for low-power signal paths — display interfaces, sensor lines, or configuration buses. The 50V rating covers typical logic-level and low-voltage differential signals.

Mating cycle budget and actuator

Rated for 10 mating cycles, this connector is intended for one-time assembly or infrequent field reconnections. The flip lock actuator secures the FPC without a secondary latch — the lock wipes the contact on insertion and holds positive retention. The FPC thickness spec is 0.20mm — a standard thickness for 0.30mm-pitch FPCs. Using a thicker or thinner cable will reduce contact force and cycle life.

ROHS3 compliant. Housing is LCP glass-filled (UL94 V-0 and HB rated), actuator is nylon glass-filled.

Frequently asked questions

What is the replacement for 5035661102 if it becomes obsolete?

If a replacement is needed in the future, the closest pin-compatible alternative would be another 11-position, 0.30mm-pitch, bottom-contact, right-angle FPC connector from the Easy-On 503566 series — but no specific MPN is listed as a drop-in.
