Compact right-angle header for tight board-edge harnesses

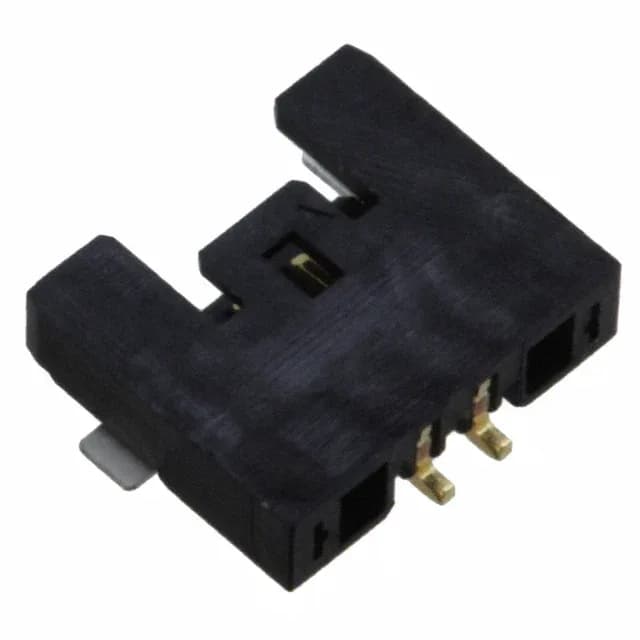

The 5037630291: Its 1.00 mm pitch and right-angle SMD orientation make it a space-efficient choice for routing a cable assembly parallel to the PCB, saving vertical clearance in enclosures. The header carries a detent lock for positive mating retention without a separate latch, and the shrouded 4-wall design protects the male pins during handling and mating.
Solder retention and automated assembly readiness
The right-angle orientation requires the mating cable to exit parallel to the board, so plan the keep-out zone on the PCB edge accordingly. The 0.059" (1.50 mm) insulation height leaves room for trace routing under the connector body.
Mating half and terminal compatibility
This header mates with the Pico-Lock 503763 series receptacle housing (not included). The matching crimp terminal (e.g., Molex 503764 series) accepts a range of wire gauges; the current rating varies by wire gauge, so confirm the terminal's ampacity for your specific wire size.
