Molex 5039600696

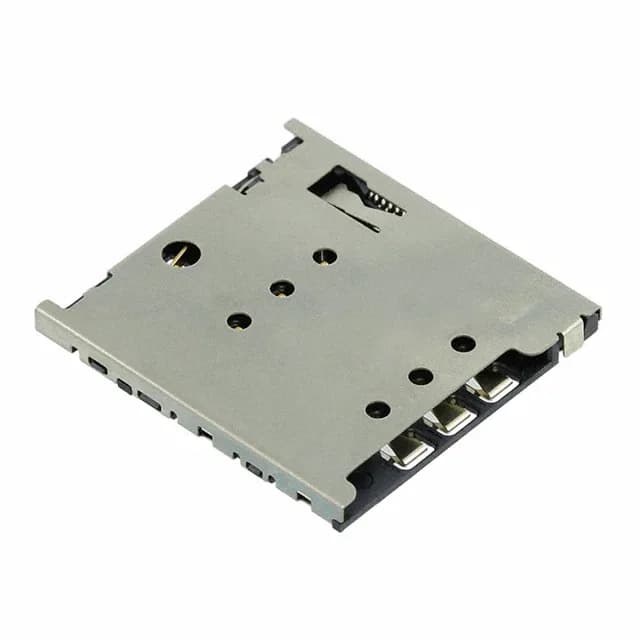

Molex 5039600696 Micro SIM Connector, 8 (6+2) Positions

MPN 5039600696
Active

Molex 503960 Series Micro SIM Connector and Ejector, 8 (6+2) positions, Push-Push, Surface Mount Right-Angle, Gold 20.0µin (0.51µm) Contacts, Normal Standard Top Mount, 1.42mm Height Above Board, Tape & Reel.

$2.8400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series503960
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5039600696 specifications
ParameterValue
Series503960
Card typeMicro SIM
MountingSurface Mount, Right Angle
Connector typeConnector and Ejector
Mounting featureNormal, Standard - Top
Height above board0.056\" (1.42mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSwitch
Contact finishGold
Positions8 (6 + 2)
Contact finish thickness20.0µin (0.51µm)
Insertion, removal methodPush In, Push Out

Product details

The Molex 5039600696 is a Micro SIM card connector from the 503960 series, combining the connector body with an integrated ejector mechanism. It accepts a standard Micro SIM card and provides 8 positions arranged as 6 signal contacts plus 2 dedicated switch contacts for card presence detection. The push-push insertion and removal method means you push the card in to seat it, then push again to release — a common and reliable mechanism for mobile devices, IoT modules, and embedded systems where the SIM needs occasional field access without tools. The right-angle surface mount orientation and 1.42mm height above board make it suited for compact PCB layouts where the card inserts parallel to the board surface. The switch feature is a practical addition: it lets the host system detect when a card is present, which matters for hot-swap or power-management logic in battery-powered designs.

It is available in Tape & Reel packaging (also Cut Tape) for SMT assembly lines.
