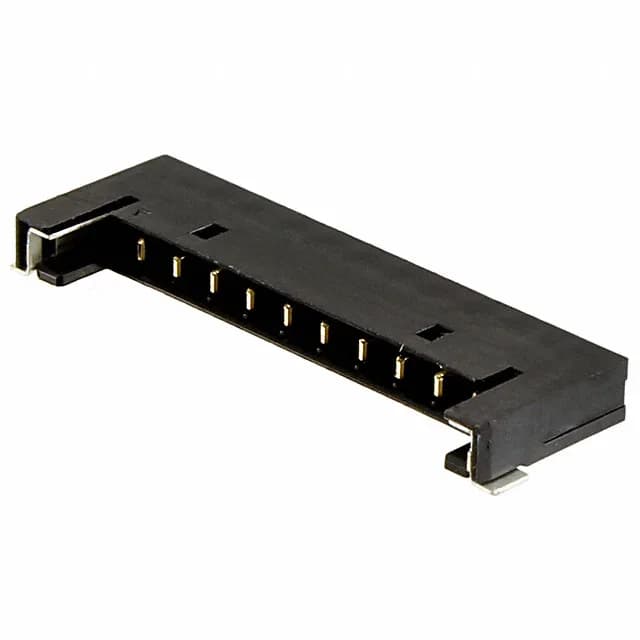

Molex 5040501091 Pico-Lock Header 10 Pos 1.5mm SMD R/A

MPN 5040501091
Active

Molex Pico-Lock 504050 series, 5040501091, board-to-cable/wire header, 10 circuits, 1.50mm pitch, surface-mount right-angle, gold-plated male blade contacts, detent lock, UL94 V-0.

$1.7700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesPico-Lock 504050
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5040501091 key specifications
ParameterValue
SeriesPico-Lock 504050
TypeMale Blade
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating150V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.079\" (2.00mm)
Insulation materialPolyamide (PA), Nylon

All specifications

5040501091 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Lighting, Telecommunications
Contact shapeRectangular
Rows1
Pitch0.059\" (1.50mm)
Positions10
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - mating3.94µin (0.100µm)

Product details

Pitch and footprint for the board layout

The 5040501091: The 1.50mm pitch on this 10-position single-row header sets the trace routing density for the PCB footprint — tight enough for compact designs but wide enough to keep routing simple on a two-layer board.
