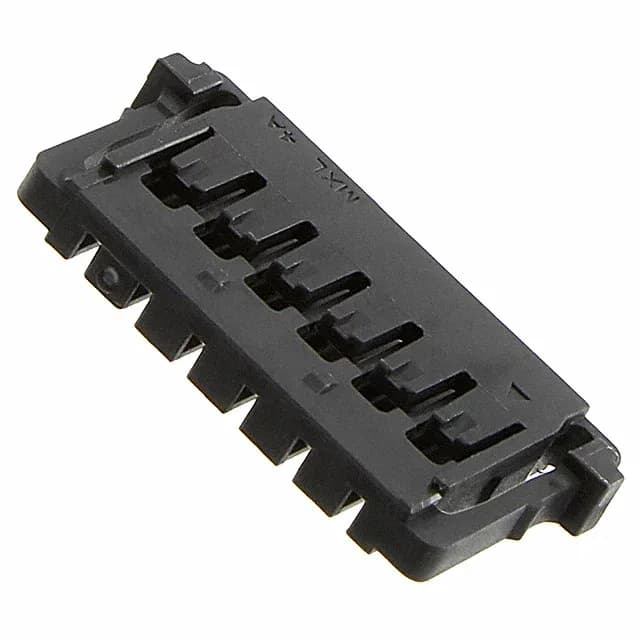

Molex Pico-Lock 504051 series receptacle housing, 6 positions, 1.50mm pitch, single row, friction lock, free-hanging, crimp termination, black PA nylon, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Pico-Lock 504051 |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.059\" (1.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
The 5040510601: The 0.059" (1.50 mm) pitch lets you route six signal or low-power lines in a footprint roughly the width of a standard 0.100" header's three positions — useful when the PCB real estate is already spoken for by passives or routing channels.
A common sourcing miss is ordering only the housing and stopping — the assembly is incomplete without the crimp contacts and the correct hand tool or applicator.
The pitch is 0.059" (1.50 mm), single row. This is the center-to-center spacing between adjacent contact cavities, which determines the board footprint for the mating header and the overall width of the connector assembly.
