Molex 5040511001 — Connector Housings

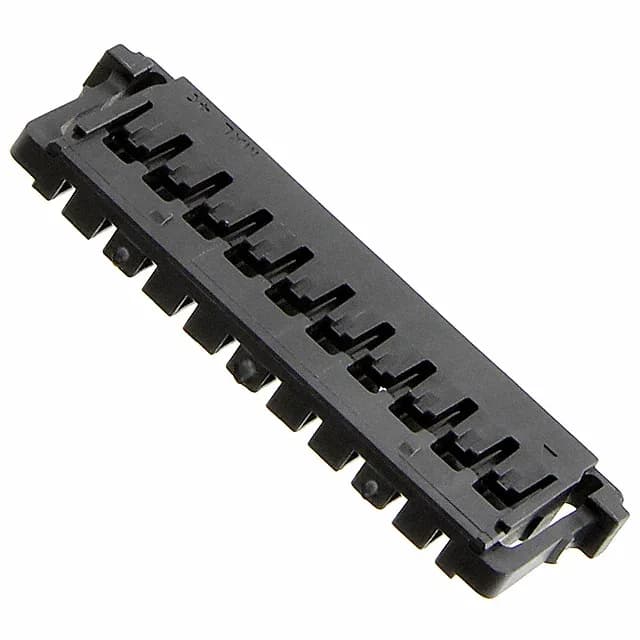

Molex 5040511001 Pico-Lock 1.50mm Receptacle Housing, 10 Pos

MPN5040511001
Active

Molex Pico-Lock 504051 series, receptacle housing, 10 positions, 1 row, 1.50mm pitch, crimp termination, friction lock, free-hanging, black polyamide, -40°C to 105°C.

$0.6800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPico-Lock 504051
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5040511001 specifications
ParameterValue
SeriesPico-Lock 504051
TypeFemale Blade Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeFriction Lock
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.059\" (1.50mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions10

Product details

The friction lock on the top surface provides a positive hold against the mating header, enough to keep the pair mated under moderate vibration in an automotive or industrial cabinet.

What mates with this housing

The 10-position count matches a 10-circuit header at the same 1.50 mm pitch; a 12-position header will not seat in this housing.

This is a housing-only part: you need the matching Molex Pico-Lock crimp terminal (female blade socket) for each circuit. The terminal, wire, and crimp tool are separate line items. Ordering the housing alone and expecting a wired assembly is the most common BOM miss on this series.

ROHS3 compliant per the current revision.

Frequently asked questions

Does Molex 5040511001 include contacts?

No. The 5040511001 is a housing only — contacts are not included. You must order the matching Pico-Lock female blade socket terminals separately and crimp them onto the wire.

What is the pitch of 5040511001?

The pitch is 1.50 mm (0.059"), which matches the Pico-Lock header footprint for board layout.

Is 5040511001 RoHS compliant?

Yes, it is ROHS3 Compliant per the current revision.
